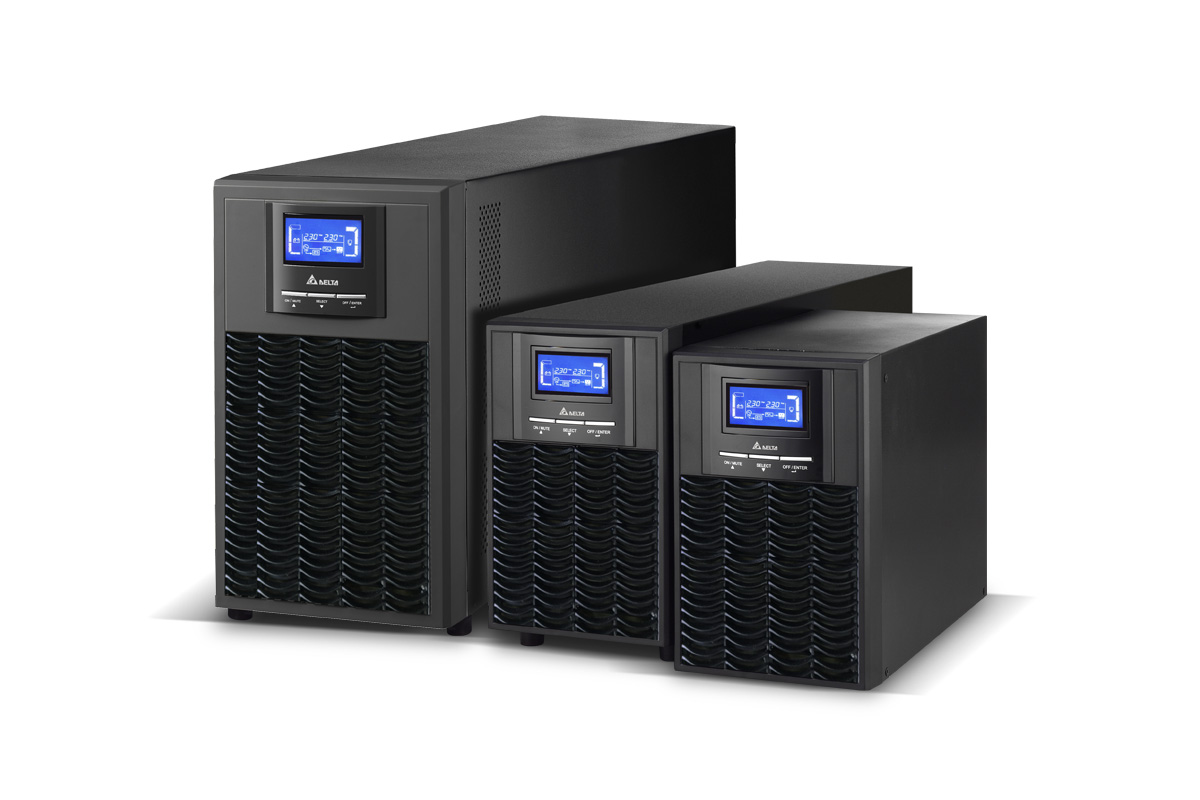

INX Series, 1/2/3 kVA

Availability

• True online double-conversion topology and zero transfer time to battery ensure high reliability
• High input power factor corrector (> 0.99) for controlled sine wave AC output
• Cold-start capability with temporary battery power when the utility power is out
• Automatic bypass to transfer the load on mains in case of overload & internal fault
• Battery deep discharge protection

Flexibility

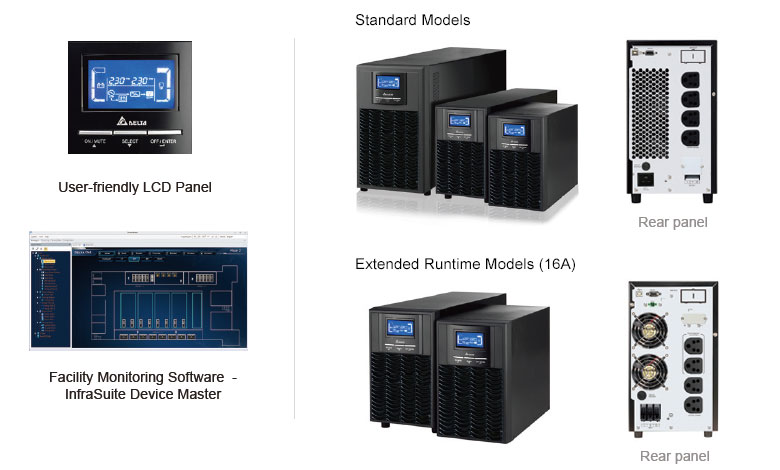

• Excellent local communications through user friendly LCD display
• Intelligent management software connectivity via RS232, mini slot or USB port
• Three multi-functional buttons for the operation and selection of parameters

Low Total Cost of Ownership

• Protection against over voltage; charger working even when the input switch is in off position
• ECO mode to provide energy cost savings
• Wide input voltage range to reduce the chance of using the battery and to extend battery life
• Intelligent battery management sustaining battery life and performance
• Fan speed control by load level and room temperature to optimize performance

Standard & Extended Runtime Models (6 A)

1. Model
2. INX-1K, INX-2K, INX-3K

3. ---

4. Power Rating
5. ⦁ INX-1K: 1 kVA / 0.8 kW
   ⦁ INX-2K: 2 kVA / 1.6 kW
   ⦁ INX-3K: 3 kVA / 2.4 kW

6. ---

7. Input
8. Nominal Voltage: 230 Vac
9. Voltage range: 110~300 Vac⁽¹⁾
10. Frequency: 40-70 Hz
11. Power Factor: > 0.99 @ nominal voltage (input voltage)

12. ---

13. Output
14. Power Factor: 0.8
15. Voltage: 200⁽²⁾/208⁽²⁾/220/230/240 Vac
16. Voltage Regulation: ± 1% (Battery mode)
17. Frequency: 47-53 Hz or 57-63 Hz (Synchronized Range)
18. Voltage Harmonic Distortion: ≤ 3% (linear load), ≤ 6% (non-linear load)
19. Overload Capability: < 105%: Continuous, 105-110%: 10 minutes, 110-130%: 1 minute, > 130%: 3 seconds
20. Crest Factor: 3:1

21. ---

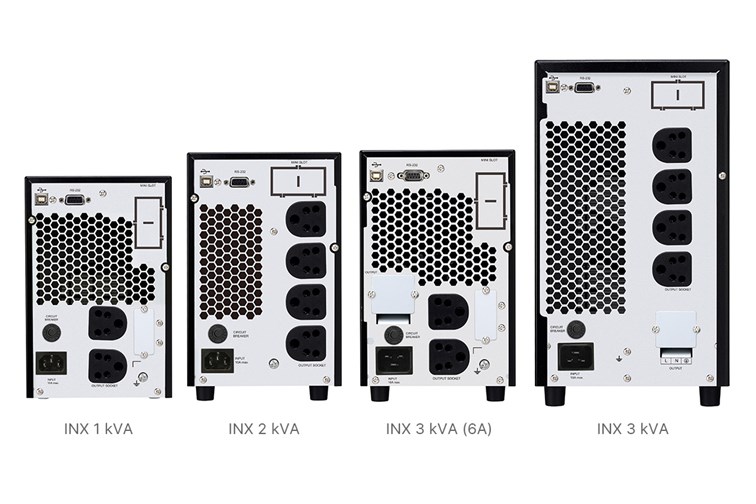

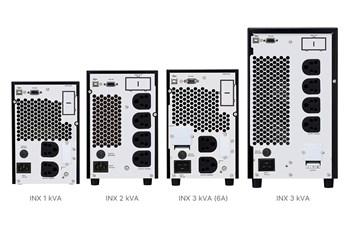

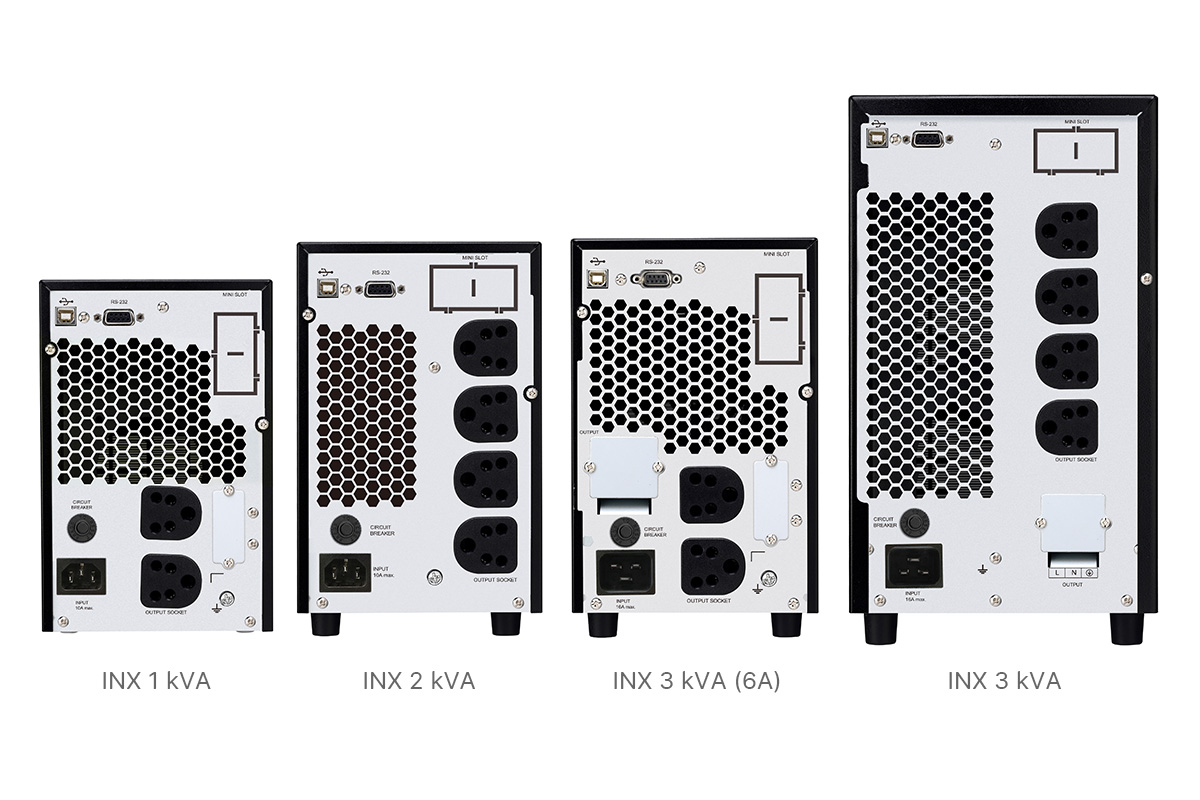

22. Receptacle
23. - Standard Runtime Model
    ⦁ INX-1K: India socket x 3
    ⦁ INX-2K: India socket x 4
    ⦁ INX-3K: India socket x 4 + Terminal block x 1
24. - Extended Runtime Model (6 A)
    ⦁ INX-1K: India socket x 2
    ⦁ INX-2K/3K: India socket x 2 + Terminal block x 1

25. ---

26. Efficiency
27. Online Mode
    ⦁ INX-1K: 88%
    ⦁ INX-2K: 89%
    ⦁ INX-3K: 90%

28. ---

29. Battery
30. Nominal Voltage
    - Standard Runtime Model
    ⦁ INX-1K: 24 Vdc
    ⦁ INX-2K: 48 Vdc
    ⦁ INX-3K: 72 Vdc
    - Extended Runtime Model (6 A)
    ⦁ INX-1K: 36 Vdc
    ⦁ INX-2/3K: 72 Vdc
31. Charge Current
    - Standard Runtime Model: 1 A
    - Extended Runtime Model (6 A): 1, 2, 4, 6 A

32. ---

33. Communication Interface
34. Display: LCD screen
35. Port: Mini Slot x1, RS-232 Port x1, USB Port x1

36. ---

37. Physical
38. Dimensions (W x D x H)
    - Standard Runtime Model
    ⦁ INX-1K: 282 x 145 x 220 mm
    ⦁ INX-2K: 504 x 145 x 220 mm
    ⦁ INX-3K: 421 x 190 x 318 mm
    - Extended Runtime Model (6 A)
    ⦁ INX-1K: 282 x 145 x 220 mm
    ⦁ INX-2/3K: 397 x 145 x 220 mm
39. Net Weight
    - Standard Runtime Model
    ⦁ INX-1K: 9 kg
    ⦁ INX-2K: 16.5 kg
    ⦁ INX-3K: 25 kg
    - Extended Runtime Model (6 A)
    ⦁ INX-1K: 4.4 kg
    ⦁ INX-2K: 7.3 kg
    ⦁ INX-3K: 7.8 kg

40. ---

41. Environment
42. Operating Temperature: 0 to 40°C
43. Relative Humidity: 20-90% (non-condensing)
44. Audible Noise: < 50 dB @ 1 meter

45. ---

46. Conformance
47. Safety: BIS, CE
48. EMC: IEC 62040-2

49. ---

50. (1) At 110~160 Vac, linear de-rating between 60~100% load is required.
    (2) De-rate capacity to 80% when the output voltage is adjusted to 200 Vac or 208 Vac.
    Please refer to the rating label for the safety rating.
51. All specifications are subject to change without prior notice.


Extended Runtime Models (16 A)

1. Model
2. INX-1K, INX-2K, INX-3K

3. ---

4. Power Rating
5. ⦁ INX-1K: 1 kVA / 0.9 kW
   ⦁ INX-2K: 2 kVA / 1.8 kW
   ⦁ INX-3K: 3 kVA / 2.7 kW

6. ---

7. Input
8. Nominal Voltage: 230 Vac
9. Voltage range: 110-300 Vac⁽¹⁾
10. Frequency: 40-70 Hz
11. Power Factor: > 0.99 @ nominal voltage (input voltage)

12. ---

13. Output
14. Power Factor: 0.9
15. Voltage: 200⁽²⁾/208⁽²⁾/220/230/240 Vac
16. Voltage Regulation: ± 1% (Battery mode)
17. Frequency:47-53 Hz or 57-63 Hz (Synchronized Range)
18. Voltage Harmonic Distortion: ≤ 2% (linear load), ≤ 4% (non-linear load)
19. Overload Capability: 100-110%: continuous, 110-130%: 2 minutes, 130-140%: 30 seconds, > 140%: 1.5 seconds
20. Crest Factor: 3:1

21. ---

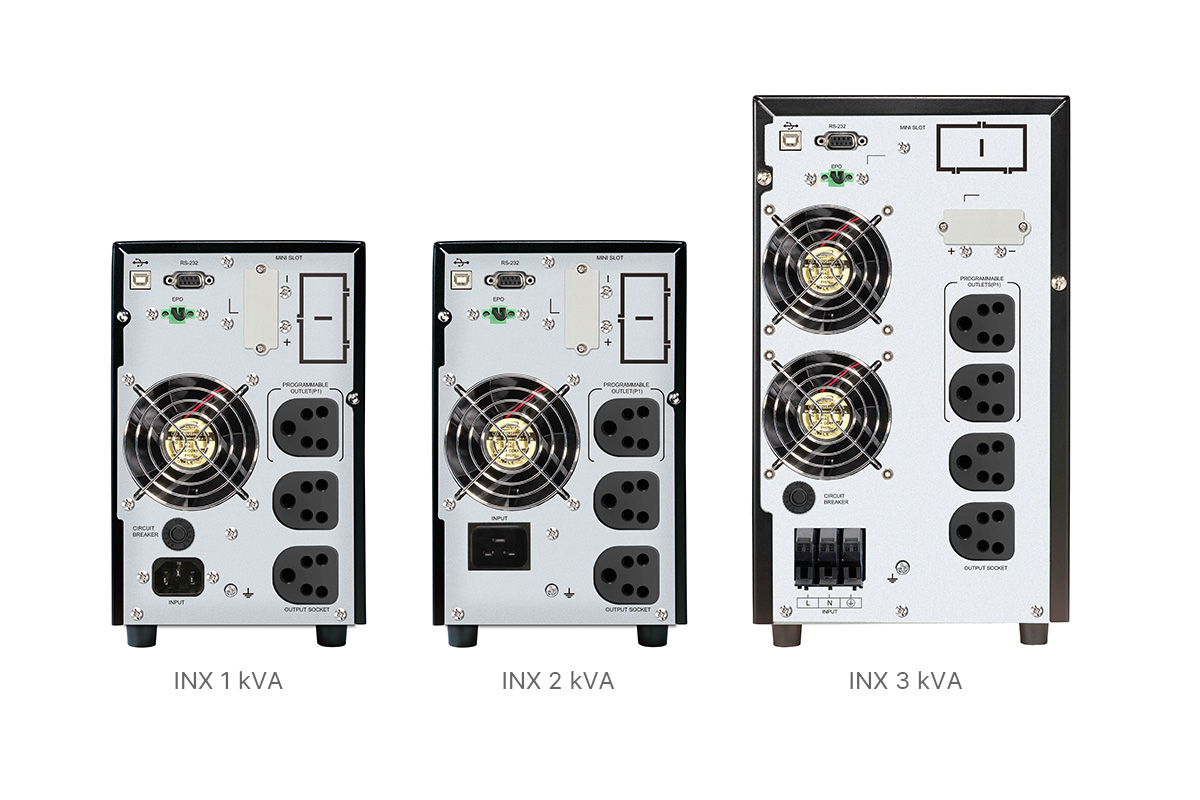

22. Receptacle
23. ⦁ INX-1K/2K: Indian socket x 3
    ⦁ INX-3K: Indian socket x 4

24. ---

25. Efficiency
26. Online Mode
    ⦁ INX-1K: 89%
    ⦁ INX-2K: 90%
    ⦁ INX-3K: 91%

27. ---

28. Battery
29. Nominal Voltage
    ⦁ INX-1K: 36 Vdc
    ⦁ INX-2K/3K: 72 Vdc
30. Charge Current: 1, 2, 4, 6, 8, 10, 12, 14, 16 A (adjustable via LCD display)

31. ---

32. Communication Interface
33. Display: LCD screen
34. Port: Mini Slot x1, RS-232 Port x1, USB Port x1, EPO x1

35. ---

36. Physical
37. Dimensions (W x D x H)
    ⦁ INX-1K/2K: 397 x 145 x 220 mm
    ⦁ INX-3K: 421 x 190 x 318 mm
38. Net Weight
    ⦁ INX-1K: 5.5 kg
    ⦁ INX-2K: 6.4 kg
    ⦁ INX-3K: 13.1 kg

39. ---

40. Environment
41. Operating Temperature: 0 to 40°C
42. Humidity: 20-95% (non-condensing)
43. Audible Noise: < 50 dB @ 1 meter

44. ---

45. (1) At 110~160 Vac, linear de-rating between 60~100% load is required.
    (2) De-rate capacity to 80% when the output voltage is adjusted to 200 Vac or 208 Vac.
    Please refer to the rating label for the safety rating.
46. All specifications are subject to change without prior notice.
