INX Series, 1/2/3 kVA (CE Certification)

Reliable Power for Business Excellence

Discover the remarkable INX, a premier online double-conversion UPS series manufactured in India and design exclusively for India customer’s need. It features an input power factor corrector and best-in-class AC-AC efficiency of up to 90% resulting in greater energy savings. The INX series leads the industry in combining compact size, availability, flexibility and best total cost of ownership. Unleash your business with this CE certified UPS. Ensure superior performance and quality that surpass expectations!





Request a Quote

Product Introduction

Features & Benefits

Standard & Extended Runtime Models (6 A)



High Reliability

  • True online double-conversion topology and zero transfer time to battery ensure high reliability
  • Wide input voltage and frequency range allows the UPS to provide stable power supply even in harsh electrical environment
  • Cold-start capability allows battery to start up the UPS when a blackout happens
  • Protection against over voltage protects UPS and loads from dangerous mains peak-voltages


Ultra Durable

  • SWider operating temperature up to 50°C
  • Excellent overload capacity secures continuous output to loads within the timeframe while loads excess nominal rating
  • Long-lasting battery life design provides battery with deep discharge protection and minimizes transfer to battery with wide input voltage range


User Friendly

  • Achieve up to 97% efficiency in active ECO mode, conserving energy and minimizing heat generation

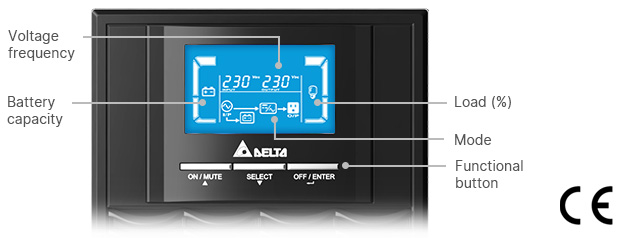

  • The intuitive LCD display with LED indicators provide detailed and accurate information about UPS status with the ability to configure locally
  • Support multiple communication interfaces, including USB port, RS232 port and Mini slot (option for mini SNMP)


Extended Runtime Models (16 A)



High Reliability

  • True online double-conversion topology and zero transfer time to battery ensure high reliability
  • Wide input voltage and frequency range allows the UPS to provide stable power supply even in harsh electrical environment
  • Cold-start capability allows battery to start up the UPS when a blackout happens
  • Protection against over voltage protects UPS and loads from dangerous mains peak-voltages


Ultra Durable

  • Wider operating temperature up to 50°C
  • Long-lasting battery life design provides battery with deep discharge protection and minimizes transfer to battery with wide input voltage range


Versatile Adaptability

  • Programmable outlets prioritize outlets to extend battery backup runtime for the most critical load
  • Achieve up to 97% efficiency in active ECO mode, conserving energy and minimizing heat generation
  • Charging current supports up to 16 A
  • REPO function allows the UPS and loads to be remotely shut down in the event of fire or building evacuation
  • Intuitive LCD display provides user with friendly monitoring and configuration functions
  • Intelligent management software connectivity via RS232, mini slot and USB ports for remote monitoring and setting


Applications

UPS N series applications


Specifications

Standard & Extended Runtime Models (6 A)


  1. Model
  2. INX-1K, INX-2K, INX-3K
  4. Topology
  5. Online double-conversion
  7. Power Rating
  8. Standard Runtime Model
    ⦁ INX-1K: 1 kVA / 0.9 kW
    ⦁ INX-2K: 2 kVA / 1.8 kW
    ⦁ INX-3K: 3 kVA / 2.7 kW
  9. Extended Runtime Model
    ⦁ INX-1K: 1 kVA / 0.8 kW
    ⦁ INX-2K: 2 kVA / 1.6 kW
    ⦁ INX-3K: 3 kVA / 2.4 kW
  11. Input
  12. Nominal Voltage: 230 Vac, 1 phase 2 Wire (1PH+PE)
  13. Voltage Range:
    - Standard Runtime Model: 180-285 Vac (full load), 120-180 Vac (with derating to 60-100%)
    - Extended Runtime Model: 160-285 Vac (full load)
  14. Frequency: 40-70 ± 0.5 Hz
  15. Power Factor: > 0.99 (full load)
  16. Plug Type: Plug 16 A India
  18. Output
  19. Nominal Voltage: 200, 208(1), 220, 230, 240 Vac
  20. Voltage Regulation: ±1%
  21. Frequency: 50/60 ± 3 Hz
  22. Total Harmonic Distortion (THDv): < 3% (linear load)
  23. Power Factor: 0.9 (Standard runtime model), 0.8 (Extended runtime model)
  24. Overload Capability: < 105%: Continuous, 105-110%: 10 minutes, 110-130%: 1 minute, > 130%: 3 seconds
  25. Current Crest Ratio: 3:1
  27. Receptacle
  28. - Standard Runtime Model
    ⦁ INX-1K: India socket x3
    ⦁ INX-2K: India socket x4
    ⦁ INX-3K: India socket x4 + Terminal block x1
  29. - Extended Runtime Model (6 A)
    ⦁ INX-1K: India socket x2
    ⦁ INX-2/3K: India socket x2 + Terminal block x1
  31. Efficiency
  32. Online Mode
    ⦁ INX-1K: 88%
    ⦁ INX-2K: 89%
    ⦁ INX-3K: 90%
  33. ECO Mode
    ⦁ INX-1K: 93%
    ⦁ INX-2K: 94%
    ⦁ INX-3K: 95%
  35. Battery
  36. Battery Type: VRLA
  37. Nominal Voltage
    - Standard Runtime Model
    ⦁ INX-1K: 24 Vdc
    ⦁ INX-2K: 48 Vdc
    ⦁ INX-3K: 72 Vdc
    - Extended Runtime Model (6 A)
    ⦁ INX-1K: 36 Vdc
    ⦁ INX-2/3K: 72 Vdc
  38. Runtime (75% load)
    ⦁ INX-1K: 5.4 mins
    ⦁ INX-2K: 5.5 mins
    ⦁ INX-3K: 5.6 mins
  39. Charge Current
    - Standard Runtime Model: 1 A
    - Extended Runtime Model (6 A): 1, 2, 4, 6 A
  41. Communication Interface
  42. Display: LCD screen with LED indicators
  43. Port: USB, RS-232, Mini slot (option for mini SNMP, mini Modbus and mini relay I/O card)
  44. Audible Alarm: Battery mode, Low battery, Overload, Fault, Bypass mode
  46. Physical
  47. Dimensions (W x D x H)
    - Standard Runtime Model
    ⦁ INX-1K: 145 x 282 x 220 mm
    ⦁ INX-2K: 145 x 504 x 220 mm
    ⦁ INX-3K: 190 x 421 x 318 mm
    - Extended Runtime Model (6 A)
    ⦁ INX-1K: 145 x 282 x 220 mm
    ⦁ INX-2/3K: 145 x 397 x 220 mm
  48. Net Weight
    - Standard Runtime Model
    ⦁ INX-1K: 9.2 kg
    ⦁ INX-2K: 16.8 kg
    ⦁ INX-3K: 27 kg
    - Extended Runtime Model (6 A)
    ⦁ INX-1K: 4.1 kg
    ⦁ INX-2K: 6.4 kg
    ⦁ INX-3K: 7.4 kg
  49. Packing Dimensions (W x D x H)
    - Standard Runtime Model
    ⦁ INX-1K: 230 x 360 x 325 mm
    ⦁ INX-2K: 230 x 590 x 355 mm
    ⦁ INX-3K: 320 x 560 x 460 mm
    - Extended Runtime Model (6 A)
    ⦁ INX-1K: 230 x 360 x 325 mm
    ⦁ INX-2/3K: 230 x 472 x 325 mm
  50. Packing Weight
    - Standard Runtime Model
    ⦁ INX-1K: 10.7 kg
    ⦁ INX-2K: 19.0 kg
    ⦁ INX-3K: 30.1 kg
    - Extended Runtime Model (6 A)
    ⦁ INX-1K: 5.6 kg
    ⦁ INX-2K: 8.3 kg
    ⦁ INX-3K: 9.3 kg
  52. Environment
  53. Operating Temperature
     - Standard Runtime Model: 0 to 50°C (40 to 50°C de-rating to 70% load)
    - Extended Runtime Model (6 A): 0 to 50°C (40 to 50°C de-rating to 80% load)
  54. Humidity: 20-90% (non-condensing)
  55. Audible Noise(2): < 45 dBA
  56. Altitude: 0-4,000 m (derating 1%/100 m from 1,000-4,000 m)
  57. Storage Temperature: -20 to +50°C
  58. Ingress Protection: IP20
  60. Conformance
  61. Safety: BIS, CE
  62. EMC: IEC 62040-2
  64. (1) Standard runtime model: 30% de-rating at 208 V. Extended runtime model: 20% de-rating at 200 V / 208 V
    (2) Audible noise test with UPS < 75% load at 25°C in online mode
  65. All specifications are subject to change without prior notice.



Extended Runtime Models (16 A)


  1. Model
  2. INX-1K, INX-2K, INX-3K
  4. Topology
  5. Online double-conversion
  7. Power Rating
  8. ⦁ INX-1K: 1 kVA / 0.9 kW
    ⦁ INX-2K: 2 kVA / 1.8 kW
    ⦁ INX-3K: 3 kVA / 2.7 kW
  10. Input
  11. Nominal Voltage: 230 Vac, 1 phase 2 Wire (1PH+PE)
  12. Voltage Range: 160-300 Vac (full load), 110-160 Vac (with derating to 60-100% load)
  13. Frequency: 40-70 ± 0.5 Hz
  14. Power Factor: > 0.99 (full load)
  15. Plug Type:
    ⦁ INX-1/2K: Plug 16A India
    ⦁ INX-3K: Terminal
  17. Output
  18. Nominal Voltage: 200(1), 208(1), 220, 230, 240 Vac
  19. Voltage Regulation: ±1%
  20. Frequency: 50/60 ± 3 Hz
  21. Total Harmonic Distortion (THDv): ≤ 2% (linear load), ≤ 4% (non-linear load)
  22. Power Factor: 0.9
  23. Connection
    ⦁ INX-1/2K: Indian socket x3
    ⦁ INX-3K: Indian socket x4 + Terminal x1
  24. Overload Capability: 100-110%: continuous, 110-130%: 5 minutes, 130-140%: 30 seconds, > 140%: 1.5 seconds
  25. Current Crest Ratio: 3:1
  27. Efficiency
  28. Online Mode
    ⦁ INX-1K: 89%
    ⦁ INX-2K: 90%
    ⦁ INX-3K: 91%
  29. ECO Mode
    ⦁ INX-1K: 95%
    ⦁ INX-2K/3K: 97%
  31. Battery
  32. Battery Type: VRLA
  33. Nominal Voltage
    ⦁ INX-1K: 36 Vdc
    ⦁ INX-2K/3K: 72 Vdc
  34. Charge Current: 1, 2, 4, 6, 8, 10, 12, 14, 16 A (configurable)
  36. Communication Interface
  37. Display: LCD screen with LED indicators
  38. Port: USB, RS-232, Mini slot (option for mini SNMP, mini Modbus and mini relay I/O card)
  39. Audible Alarm: Battery mode, Low battery, Overload, Fault, Bypass mode
  41. Physical
  42. Dimensions (W x D x H)
    ⦁ INX-1/2K: 145 x 397 x 220 mm
    ⦁ INX-3K: 190 x 421 x 318 mm
  43. Net Weight
    ⦁ INX-1K: 6.1 kg
    ⦁ INX-2K: 7.4 kg
    ⦁ INX-3K: 11.4 kg
  44. Packing Dimensions (W x D x H)
    ⦁ INX-1/2K: 230 x 472 x 325 mm
    ⦁ INX-3K: 320 x 560 x 460 mm
  45. Packing Weight
    ⦁ INX-1K: 8.0 kg
    ⦁ INX-2K: 9.3 kg
    ⦁ INX-3K: 14.5 kg
  47. Environment
  48. Operating Temperature: 0 to 50°C (40 to 50°C de-rating to 80% load)
  49. Humidity: 20-95% (non-condensing)
  50. Audible Noise
    ⦁ INX-1K: < 50 dBA
    ⦁ INX-2/3K: < 57.5 dBA
  51. Altitude: 0-4,000 m (derating 1%/100 m from 1,000-4,000 m)
  52. Storage Temperature: -20 to +50°C
  53. Ingress Protection: IP20
  55. Conformance
  56. Safety: BIS, CE
  57. EMC: IEC 62040-2
  59. (1) De-rating to 80% load
  60. All specifications are subject to change without prior notice.

  61.
Download

Tools & Services

Download Center

Search and download offer documentation, support information, certificates, CAD and software.

Contact Us

Do you have an inquiry but do not know where to turn? Then contact one of our centers by the web inquiry form

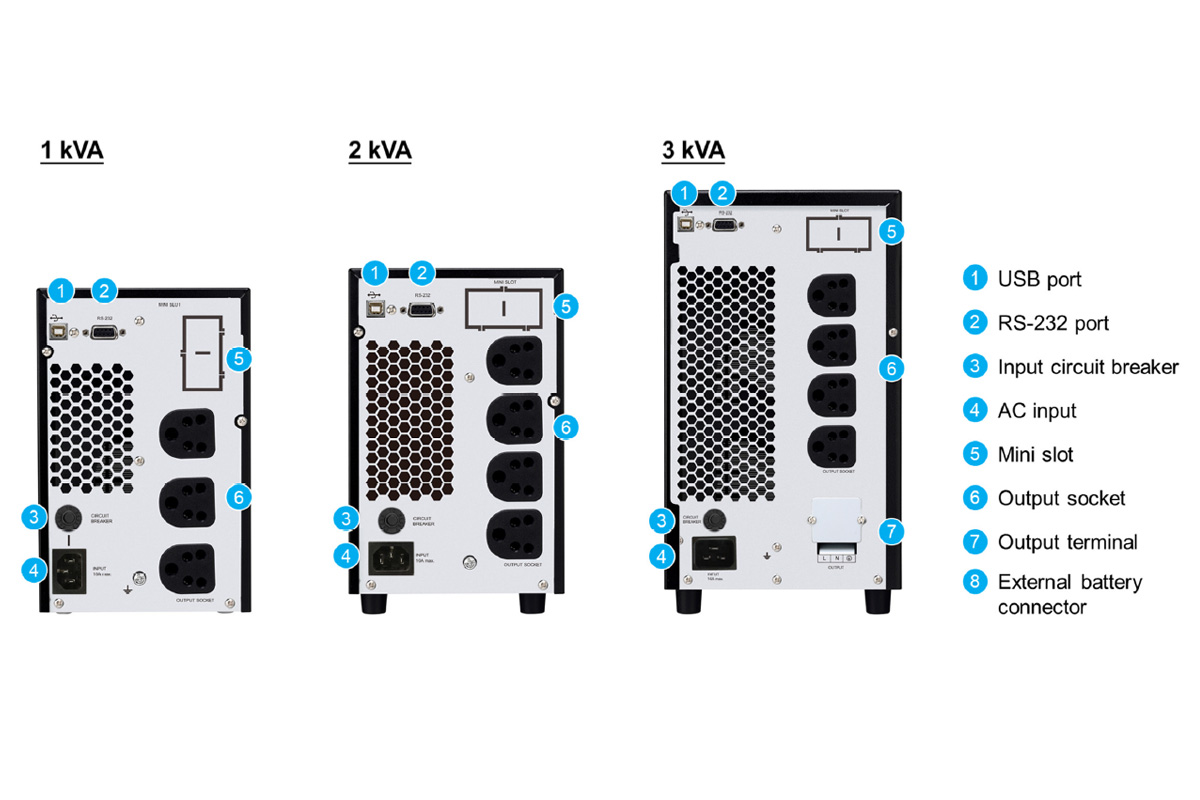

Standard Runtime Models (6A), Rear Panel

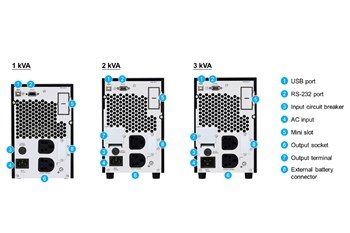

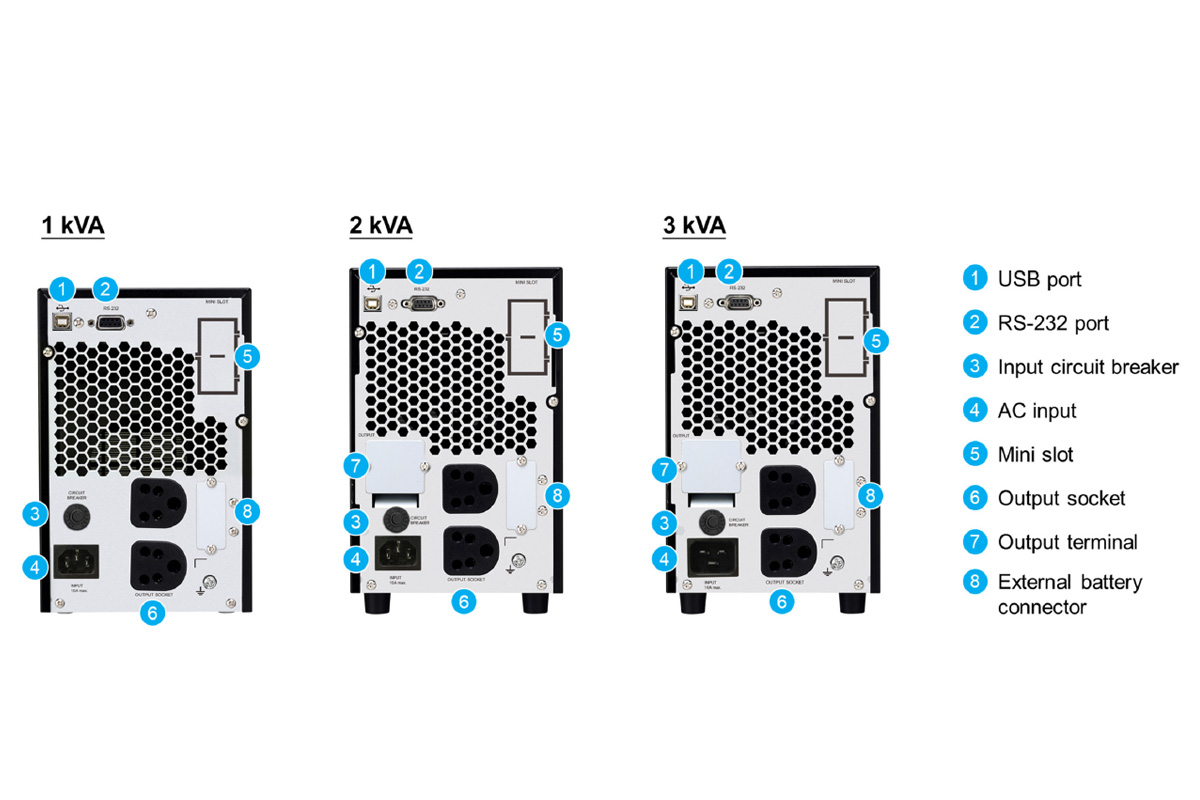

Extended Runtime Models (6A), Rear Panel

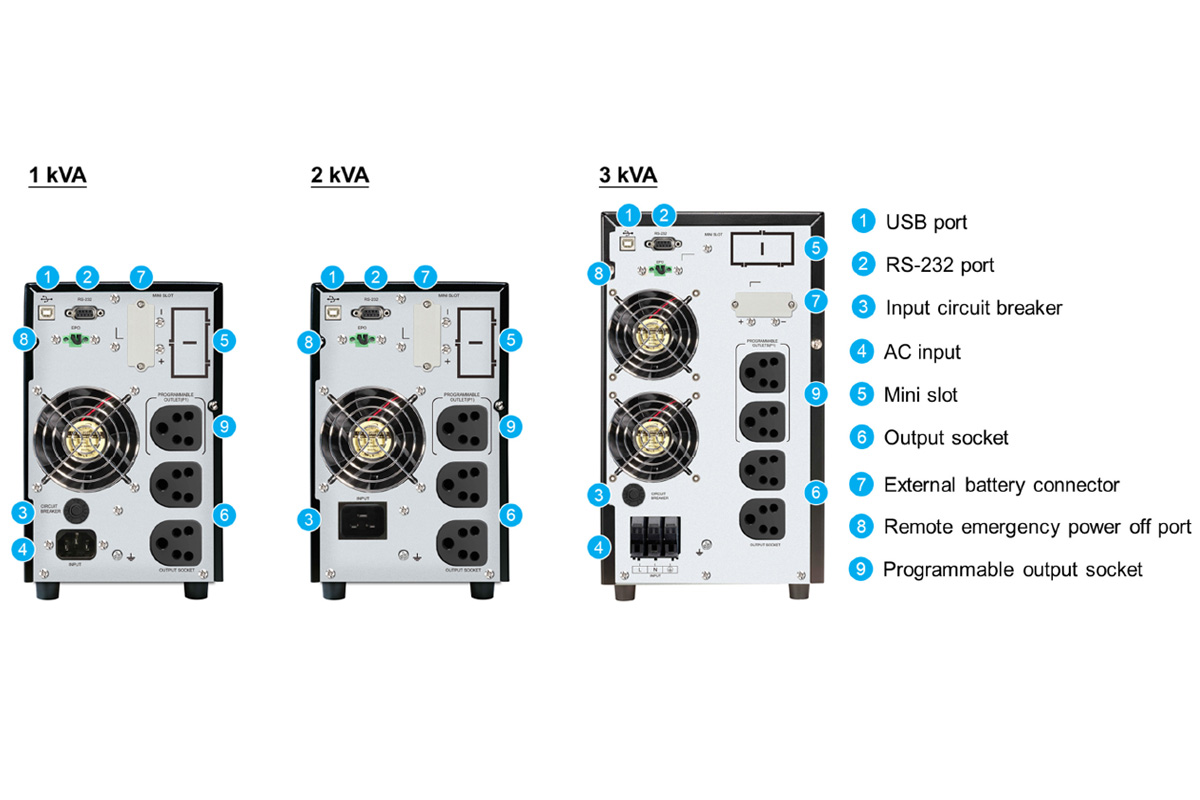

Extended Runtime Models (16A), Rear Panel
