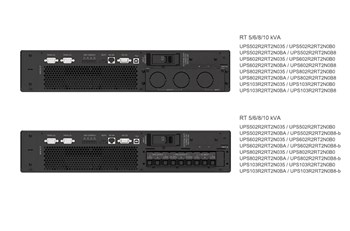

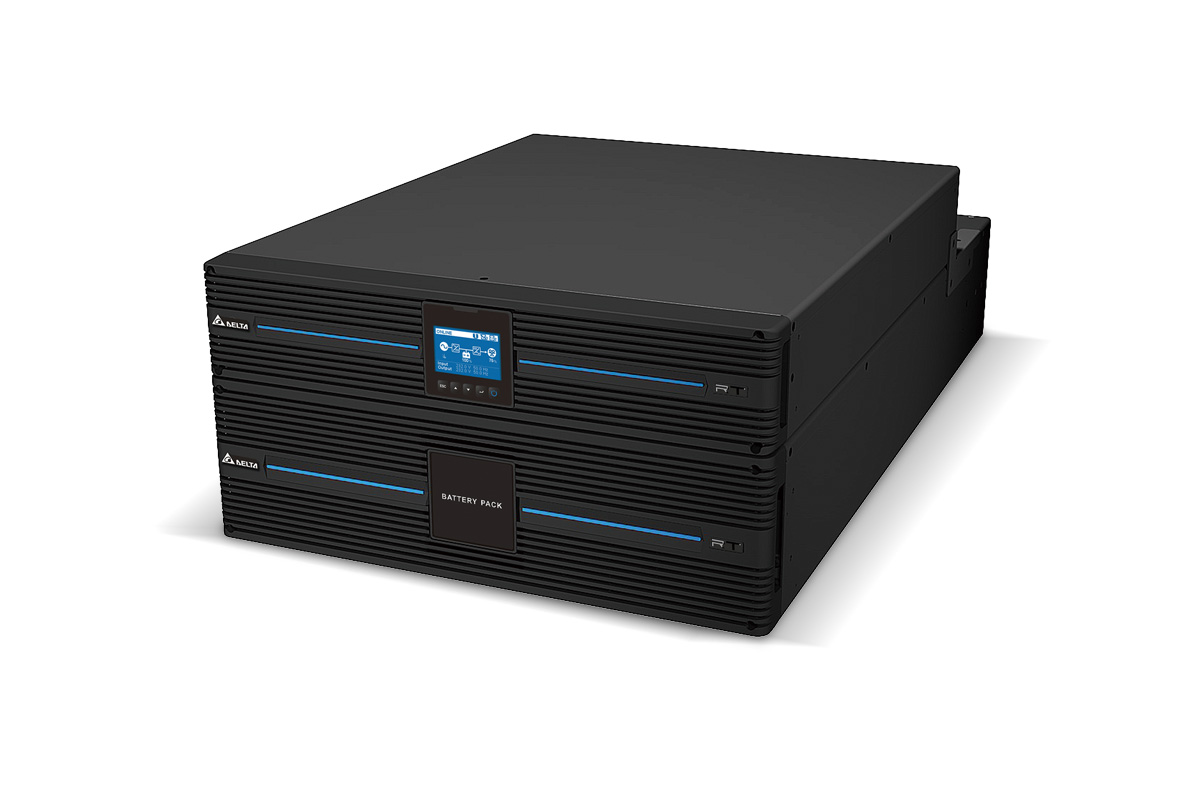

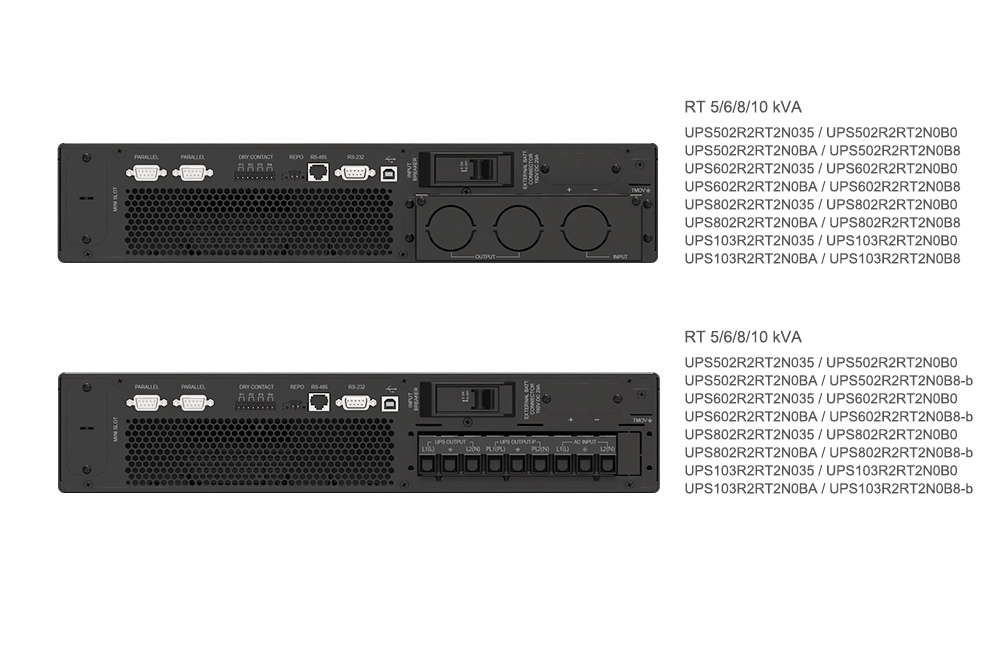

RT Series 5/6/8/10 kVA

Efficiency and Reliability

• Best-in-class AC-AC efficiency of up to 95.5% and 99% in ECO mode for lower energy costs
• Wide input voltage range for operation in harsh environments and extended battery life
• AC-start function enables the UPS to switch on without battery connection
• Hot-swappable batteries for continuous operation during replacements

Availability and Flexibility

• Unity output power factor ensures no de-rating with loads
• Up to 4 units parallel capacity for redundancy and load expansion
• Programmable load bank disconnects non-critical loads during blackouts, saving battery power for critical loads
• VRLA and Li-ion External Battery Cabinet (EBC) for scalable runtime
• Extended Runtime models support flexible battery quantity, reducing maintenance costs
• The Power Distribution Box (PDB) and Maintenance Bypass Breaker (MBB) come standard with Standard Runtime models, simplifying configuration

Manageability

• User-friendly LCD display for excellent local management
• Intelligent battery management for extended life and maximum performance
• Free UPS management software and multiple communication interfaces ensure seamless remote monitoring and device protection

1. Model
2. RT-5K, RT-6K, RT-8K, RT-10K

3. ---

4. Topology
5. Online double-conversion

6. ---

7. Power Rating
8. ⦁ RT-5K: 5 kVA / 5 kW
   ⦁ RT-6K: 6 kVA / 6 kW
   ⦁ RT-8K: 8 kVA / 8 kW
   ⦁ RT-10K: 10 kVA / 10 kW
9. Parallel Configuration: Up to 4 units

10. ---

11. Input
12. Nominal Voltage: 200/208/220/230/240 Vac, 1P2W+PE
13. Voltage Range: 175-280 Vac (100% load), 100-175 Vac (with derating to 50-100% load)
14. Frequency Range: 40-70 Hz
15. Total Harmonic Distortion (THDi): < 3%
16. Power Factor: > 99% (100% load)
17. Connection: Input terminal

18. ---

19. Output
20. Nominal Voltage: 200/208/220/230/240 Vac, 1P2W+PE
21. Voltage Regulation: ±1%
22. Frequency: 50/60 ± 0.05 Hz
23. Total Harmonic Distortion (THDv): < 2% (linear load), < 4% (non-linear load)
24. Power Factor: 1
25. Connection: Terminal x1, Programmable terminal x1
26. Overload Capability⁽¹⁾: 106-125%: 5 mins, 126-150%: 1 min, > 150%: 500 ms
27. Current Crest Ratio: 3:1

28. ---

29. Efficiency
30. Online Mode: Up to 95.5%
31. Eco Mode: Up to 99%

32. ---

33. Battery
34. Battery Type: VRLA, Lithium-ion
35. Nominal Voltage: 144 Vdc⁽²⁾, 192-264 Vdc
36. Charge Current: Up to 8 A

37. ---

38. Communication Interface
39. Display: Graphical LCD display with LED indicators
40. Port: USB, RS-232, RS-485, Mini Slot, REPO, Input dry contact x1, Output dry contact x3

41. ---

42. Physical
43. Dimensions (W x D x H):
    ⦁ RT-5/6K: 440 x 430 x 88.2 mm
    ⦁ RT-8/10K: 440 x 565 x 88.2 mm
44. Weight:
    ⦁ RT-5/6K: 10.9 kg
    ⦁ RT-8/10K: 15.2 kg

45. ---

46. Environment
47. Operating Temperature: 0 to 55°C (45 to 55°C de-rating to 75% load)
48. Humidity: 5-95% (non-condensing)
49. Audible Noise:
    ⦁ RT-5/6K: < 48 dBA
    ⦁ RT-8/10K: < 50 dBA
50. Altitude: 0-3000 m (derating 1%/100 m from 1000-3000 m)
51. Ingress Protection: IP20

52. ---

53. Conformance
54. Safety: CE, UKCA, TISI, RCM
55. EMC: IEC 62040-2
56. Performance: IEC 62040-3
57. Sustainability: RoHS, REACH

58. ---

59. (1) Operating temperature < 32°C
    (2) Derating to 70% load

    All specifications are subject to change without prior notice.
60.

1.
2. Extended Model
3. VRLA Battery

4. Power Rating External Battery Pack P/N External Battery Pack (EBP) Quantity Runtime at different loads (mins) 25% 50% 75% 100% 5 kVA (200/ 208 V) BBU161B107035 1 35.6 15.6 8.9 5.6 2 68.0 31.0 19.0 13.0 3 106.0 51.0 32.0 22.6 4 145.5 71.5 45.5 32.5 5 185.0 91.5 59.0 42.5 5 KVA (220/230/240 V) BBU161B107035 1 27.6 11.3 6.4 4.1 2 63.3 27.0 16.5 11.0 3 96.0 45.5 28.0 19.5 4 131.0 63.5 40.0 28.5 5 166.5 82.0 52.5 37.5 BBU201B109035 1 49.7 21.3 12.5 8.4 2 111.0 51.2 31.3 21.7 3 173.0 82.4 51.7 36.5 4 235.3 114.0 72.6 52.0 6 kVA BBU161B107035 1 22.0 8.7 4.9 3.0 2 51.0 22.0 13.0 8.5 3 82.0 37.0 22.5 15.5 4 112.5 53.0 32.5 22.5 5 143.5 68.5 43.0 30.0 BBU201B109035 1 40.0 16.8 9.8 6.5 2 91.2 41.0 24.9 17.0 3 143.2 67.0 41.5 29.0 4 195.4 93.3 58.8 41.7 8 kVA BBU201B109035 1 36.3 15.6 9.3 5.1 2 66.2 28.9 17.0 11.6 3 105.4 48.0 29.0 20.0 4 144.8 67.5 41.7 29.1 5 184.4 87.3 54.7 38.6 10 kVA BBU201B109035 1 30.2 11.9 6.2 3.7 2 51.0 21.7 12.6 8.5 3 82.4 36.5 21.8 14.9 4 114.0 52.0 31.6 21.8 5 145.8 67.7 41.8 29.2

5. Lithium-ion Battery

6. Power Rating External Battery Pack (EBP) Quantity Battery Module Quantity Runtime at different loads (mins) 25% 50% 75% 100% 5 kVA 1 1 29.3 15.5 10.4 7.6 2 58.5 31.0 20.9 15.3 6 kVA 1 1 23.8 12.9 8.6 6.3 2 47.6 25.8 17.2 12.6 8 kVA 1 1 17.7 9.7 6.5 4.5 2 35.3 19.4 12.9 9.1 10 kVA 1 1 14.3 7.7 5.2 3.6 2 28.6 15.5 10.4 7.3
