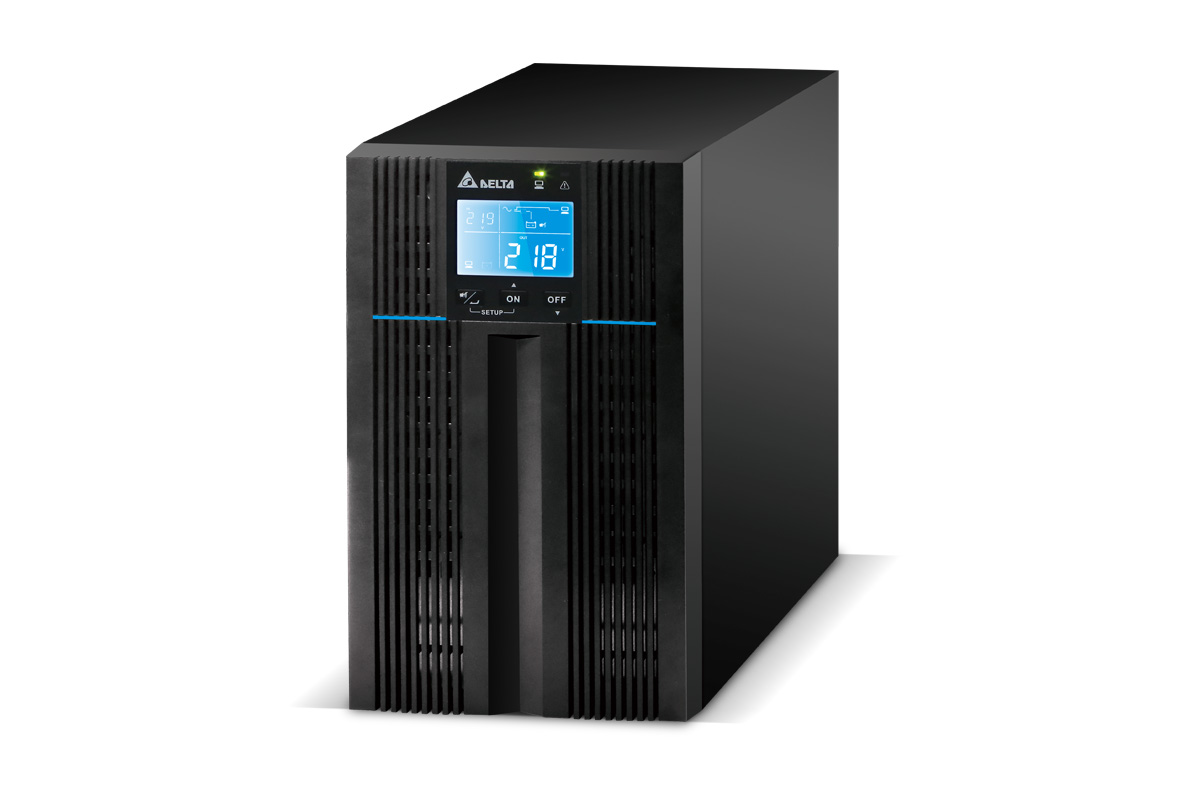

N Series 6/10 kVA

Features & Benefits

The Most Compact Design and Best TCO

• The smallest dimensions in its class saves significant space for more critical equipment

• A pioneer in unity power factor (kVA=kW) to maximize power availability

• The highest AC-AC efficiency up to 95% and efficiency of 98% in ECO mode for exceptional energy cost savings

• Automatic speed regulation function with multi-stage fan speed control maximizes system efficiency, significantly reduces audible noise, and prolongs the service life of the fans

High Availability

• True online double-conversion topology and zero transfer time to battery ensure high reliability

• Parallel configuration for expansion and N+X redundancy up to 4 units

• Advanced DSP (Digital Signal Processor) controller for fast computation capabilities and a simplified control circuit for enhanced stability

• Generator compatibility ensures continuous and reliable power

Intelligent Management

• Excellent local communications through user-friendly LCD display and LED indicators

• Intelligent battery management maximizes battery performance and extends battery life

• Various types of communication interfaces enhance monitoring and manageability

Applications

Specifications

1. Model
2. N-6K / N-10K

3. ---

4. Power Rating
5. N-6K: 6 kVA / 6 kW
   N-10K: 10 kVA / 10 kW

6. ---

7. Input
8. Nominal Voltage: 200/208/220/230/240 Vac
9. Voltage Range
   200/208 (de-rating to 90%): 100~280 Vac *
   220/230/240: 100~280 Vac **
10. Frequency: 40~70 Hz
11. Power Factor: > 0.99 (full load)
12. Current Harmonic Distortion: < 3%

13. ---

14. Output
15. Power Factor: 1
16. Nominal Voltage: 200/208/220/230/240 Vac
17. Frequency: 50/60 Hz ±0.05 Hz
18. Voltage Harmonic Distortion: < 2% (linear load)
19. Overload Capability
    < 105%: continuous
    105~125%: 2 minutes
    125~150%: 30 seconds
20. Crest factor: 3:1

21. ---

22. Efficiency
23. AC-AC: Up to 95%
24. ECO mode: Up to 98%

25. ---

26. Battery
27. Voltage: 192~264 Vdc adjustable
28. Charge Current : 1.5~8 A selectable

29. ---

30. Audible Noise: < 50 dBA

31. ---

32. Display: LED indicators and LCD display

33. ---

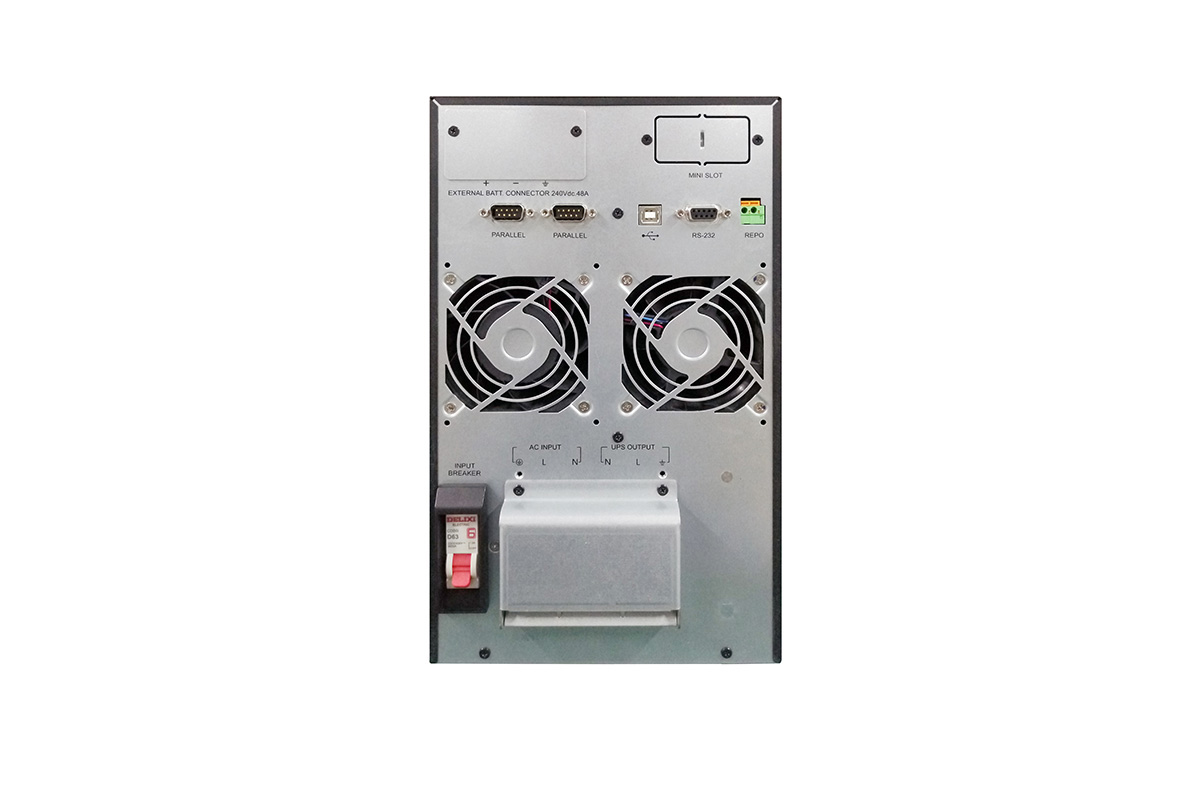

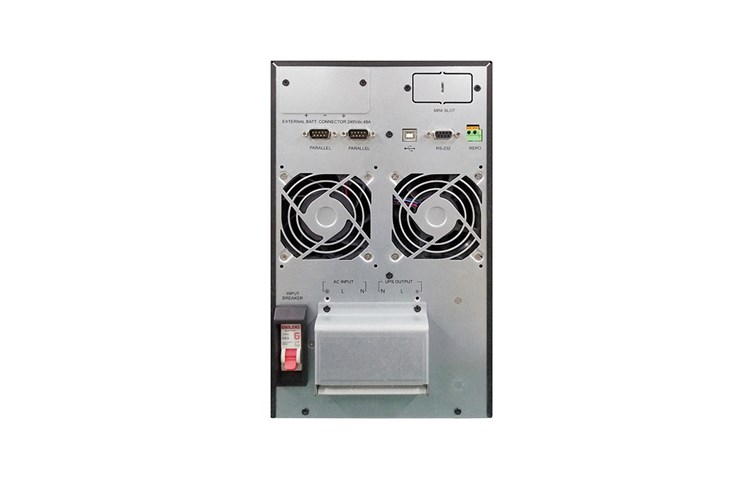

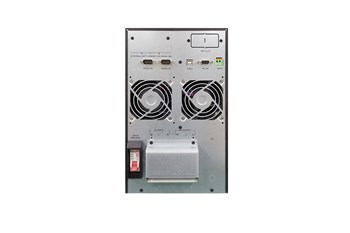

34. Communication Interfaces: REPO x 1, RS-232 Port x 1, USB Port x 1, Parallel Port x 2, Smart Slot x 1

35. ---

36. Physical
37. Dimensions (W x D x H): 190 x 390 x 325 mm
38. Weight
    N-6K: 10.1 kg
    N-10K: 12.7 kg

39. ---

40. Environment
41. Operating Altitude: 1000 meters (without de-rating)
42. Operating Temperature
    0~40℃ (at 100% load)
    45~55℃ (de-rating to 80%)
43. Storage Temperature: -15~50℃
44. Relative Humidity: 5~95% (non-condensing)

45. ---

46. * Linear de-rating between 40~90% load at 100~175 Vac.
    ** Linear de-rating between 40~100% load at 100~194 Vac.

    All specifications are subject to change without prior notice.
