VFB080XTH

Delta’s VFB080XTH series of DC energy-saving ventilation fans use DC brushless motors, which are energy-saving and quiet. With large air volume and low noise, it is suitable for bathroom and toilet spaces that require high ventilation. It has different models of dual wind speed and humidity sensing to provide indoor options.

Product Introduction

Product Introduction
Contact Us

Product Introduction

Features & Benefits

Large air volume and low noise
Humidity sensor control
Very silent
Power saving DC – DC motor
Multiple safety design
Five-year warranty for the whole machine

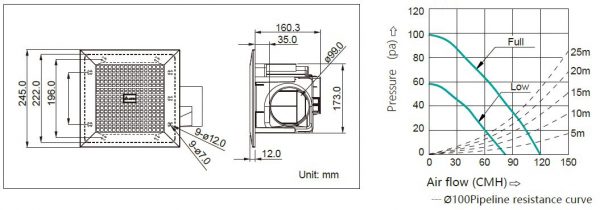

The max. air flow is measured in free air; max air pressure is measured at zero air flow.
Noise is measured in semi-anechoic chamber in free air, one meter from intake, right and left side. 3 microphones to average.

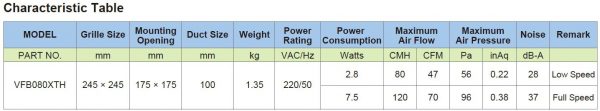

All readings are typical values at rated voltage.
VFB080XTH operates in low speed mode (green LED) or full speed mode (amber LED) by cycling ON/OFF switch. Default is low speed.
Specifications are subject to change without notice.
