VFB120XTH

Delta’s VFB120 series of DC energy-saving ventilation fans use DC brushless motors, which are energy-saving and quiet. 210mm mounting hole size, with dual wind speed and humidity sensor models, to provide indoor options.

  • Applicable pings: 3~6 pings

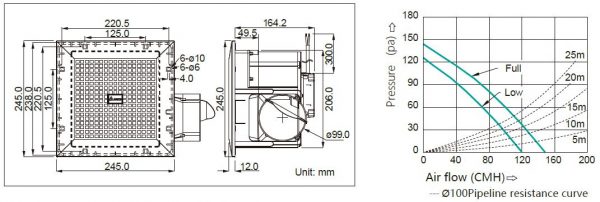

  • Mounting hole size: 210 x 210 mm
  • VFB120XTH: Double air volume, maximum air volume 150 m³/h

Product Introduction

Features & Benefits
  • Two-stage air volume control
  • Very silent
  • Power saving DC DC motor
  • Multiple safety design
  • Five-year warranty for the whole machine

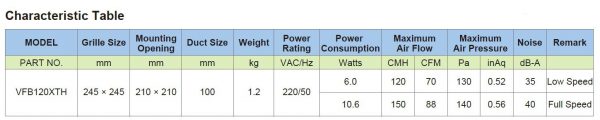

  • The max. air flow is measured in free air; max air pressure is measured at zero air flow.
  • Noise is measured in semi-anechoic chamber in free air, one meter from intake, right and left side. 3 microphones to average.
  • All readings are typical values at rated voltage.
  • VFB120XTH operates in low speed mode (green LED) or full speed mode (amber LED) by cycling ON/OFF switch. Default is low speed.
  • Specifications are subject to change without notice.
