VFB160CTH & VFB200DTH

Delta’s VFB160 and VFB200 series of DC energy-saving ventilation fans adopt DC brushless motors, which are energy-saving and quiet. Large air volume, low noise design, suitable for large spaces requiring high air exchange. The main machine shell is made of rust-proof galvanized steel plate, which is sturdy and durable.

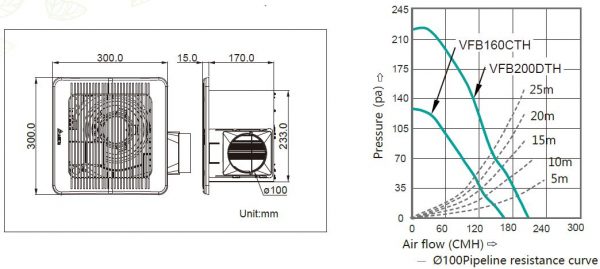

Mounting hole size: 240 x 240 mm
VFB200DTH: super large air volume 200m³/h

Product Introduction

Product Introduction
Contact Us

Product Introduction

Features & Benefits

High back pressure and low noise
Ultra-high ventilation
Power saving DC – DC motor
Multiple safety design
Five-year warranty for the whole machine

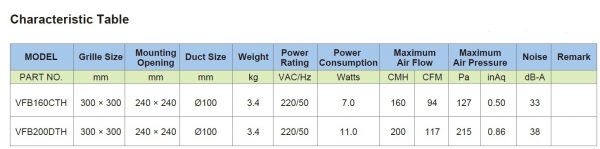

The max. air flow is measured in free air; max air pressure is measured at zero air flow.
Noise is measured in semi-anechoic chamber in free air, one meter from intake, right and left side. 3 microphones to average.
All readings are typical values at rated voltage.
Specifications are subject to change without notice.
