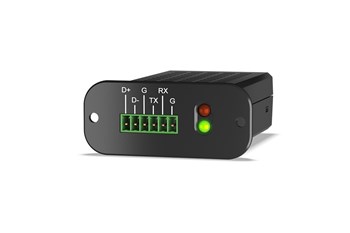

Mini Modbus Card

Features & Benefits

• Provides your UPS the functionality of communication with your PC through MODBUS protocol

• Implementation of MODBUS RTU protocol

• Provides MODBUS function including Read Coils/ Discrete Inputs/ Holding Registers/ Input Registers and Write Single Coil/ Single Register

• Provides RS-485 and RS-232 ports. Your PC can communicate with the UPS through the RS-485 port or RS-232 port or both simultaneously

• Provides alarm LEDs so that you can tell communication status quickly

• Besides MODBUS protocol, also supports 3 Phase/ Regular protocol. You can select communication protocol through function switches

• Provides firmware upgrade functionality through the RS-232 port

Specifications

1. Mode: lMini MODBUS Card

2. ---

3. Dimensions: 87 x 69 x 30 mm

4. ---

5. Weight: 50 g

6. ---

7. Operating Temperature: 0~50℃

8. ---

9. Operating Humidity: 5~95% (non-condensing)

10. ---

11. Power Input: 12 ± 2 Vdc

12. ---

13. Power Consumption: 1.5 Watts (Max.)

14. ---
