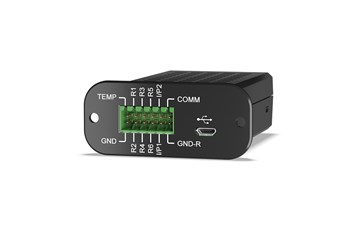

Mini Relay I/O Card

Features & Benefits

Six relay output contacts: transmit the UPS information for users to monitor the UPS status

• Each output relay is configurable to meet the users’ needs for different UPS events

• Each output relay has either Normally Open (NO) or Normally Closed (NC) configuration

Two input contacts: control the UPS

• Each input contact is configurable for UPS shutdown or battery test

• The UPS shutdown delay is adjustable

One temperature detection input contact: monitors the external temperature of the UPS (please contact service personnel for details).

One Micro-USB: makes the configuration easier via a PC.

Specifications

1. Model: Mini Relay I/O Card

2. ---

3. Dimensions: 87 x 69 x 30 mm

4. ---

5. Weight: 70 g

6. ---

7. Operating Temperature: 0~50℃

8. ---

9. Operating Humidity: 10~80%

10. ---

11. Power Input: 12 ± 3 Vdc

12. ---

13. Power Consumption: 3 Watts (Max.)

14. ---
