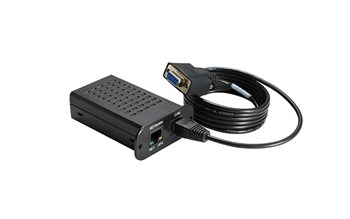

Mini SNMP IPv6 Card

Features & Benefits

Network

• SNMP
  SNMPv1, v2c and v3 protocols support; accepts NMS monitoring as well as actively sends Trap packets to target hosts; supports IPv4 and IPv6 TCP/IP protocol

• HTTP
  Monitor and set up through network browser with built-in web server

• Protocol
  HTTP, HTTPS, Modbus TCP, Telnet, SSH, FTP, SFTP, DHCP, SMTP, SNTP, Syslog

• MIB
  Supports RFC1628 and Delta proprietary UPSv4 and UPSv5 MIB

Management

• Regular power on and off
  Can set up UPS power on and off time

• Regular testing
  Battery discharge test to ensure the battery is in good condition

• Smart Shutdown
  Can send power off signal to connected host actively if the host computer has Shutdown Agent installed

• Probe
  Optional environment probe can integrate ambient temperature and humidity with 4 additional digital inputs for total cabinet monitoring

Diagnosis

• Event log
  Keep date, time, and event sequence in event log file

• History records
  Keep date, time, and UPS parameter data. Can be exported into XLS file for further processing

Reaction to events

• UPS shutdown
  Define delay time for UPS power off to avoid deep discharge

• Email
  Send email notification to predefined recipients in case of power event

Specifications

1. Network Connection: RJ-45 jack connector

2. ---

3. Operating Temperature: 0~60°C

4. ---

5. Input Power: 12 Vdc

6. ---

7. Power Consumption: 2 Watt Maximum

8. ---

9. Dimensions: 87 x 70 x 30 mm

10. ---

11. Weight: 75 g

12. ---
