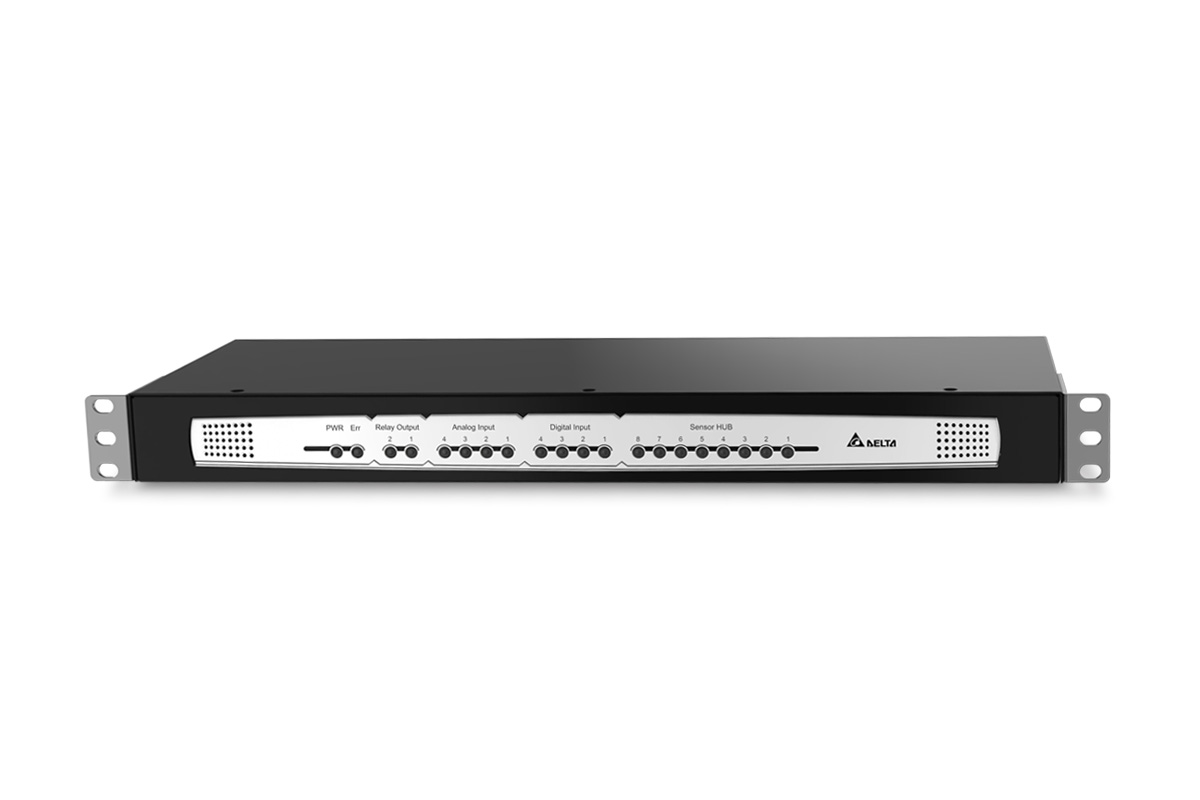

EnviroStation

Features & Benefits

Easy to Manage

• Assess and collect key data center information for enhanced management

• Real-time notification provides faster management response and more effective operations

• Setting manager password for higher security

• SNMP allows easy integration with any enterprise management system

Convenience

• Monitoring via internet browser

• InfraSuite Manager remote monitoring software provides prompt handling of any data center situation

• Graphical interface and historical data records for more effective management

• Real-time alarm notifications shortens management response time

Flexibility

• Supports SNMP communication protocol

• Sets each alarm value based on actual requirements

Specifications

1. Model: EMS2000

2. ---

3. Input
   Power: 100~240 Vac, 50/60 Hz
4. Digital Input
   Wet Contact Signal:　• Alarm Voltage 5~24 Vdc, 1-9 mA
   Dry Contact Signal:　• Normal: Off (open circuit)　• Alarm: On (short circuit)
5. Analog Input
   Voltage: 0~10 Vdc
   Current: 4~20 mA
6. RTD
   Range: 0~50°C
   Accuracy: ± 1°C with 3-wire PT100
7. Resistance Temperature Detection (x1)
   Support 2-wire or 3-wire resistance
8. Leakage
   Detect Voltage < 1 V (alarm signal with S-1FP leak sensor)

9. ---

10. Output
11. Sensor HUB
    For connection with sensor devices (such as smoke detectors, fire detectors, or door sensors, etc) and support:
    +12 V, 0.8 A (max)
    +24 V, 1.0 A (max)
    One port limit 0.6 A
12. Delta Bus: +12 V, 0.8 A (max)
13. Relay Output: 26 Vdc (max), 0.8 A (max)

14. ---

15. Alert
16. Warning Light (x1)
    Included in the package and can connect to EMS2000 via a Sensor Hub converter (through Port 1 or Port 2) to alert for abnormal conditions.

17. ---

18. Network Connection
19. RJ45 (x1): 10/100 Base-T
    RS485 (x2): Standard ModBus
    Console (x1): Connect to PC via RJ-45 to DB9 cable (cable is included in the package) A configuration port is available for the console mode.

20. ---

21. Environment
22. Operating Temperature: 0~45°C
    Storage Temperature: -20~60°C
    Operating Humidity: 0~ 90% RH (non-condensing)

23. ---

24. Dimensions
25. Product (W x D x H): 440 x 157 x 44 mm
    Package (W x D x H): 510 x 410 x 150 mm

26. ---

27. Weight
28. Product: 2.4 kg
    Package: 5 kg

29. ---

30. These specifications are subject to change without notice. Please contact us or our distributors in your region for the latest specs.
