DPH Series 50 - 300/500/600 kVA

Features & Benefits

Excellent Power Performance

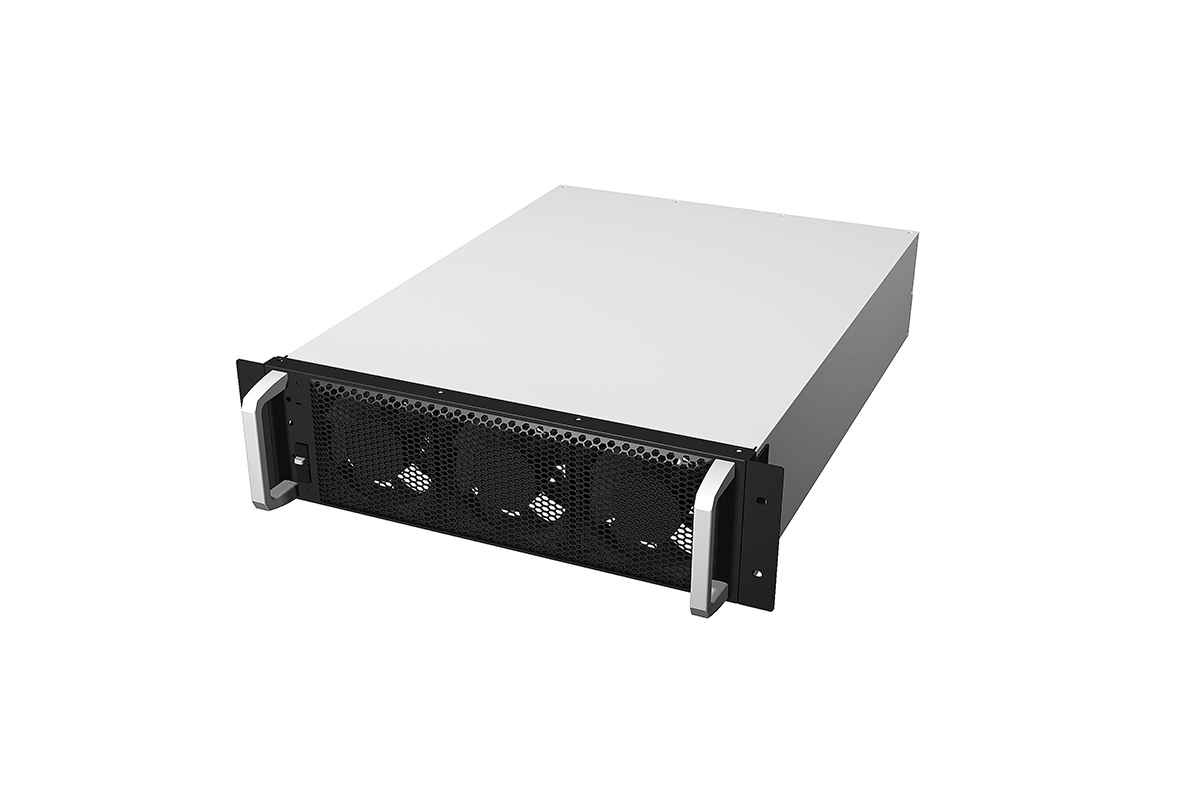

• The industry's leading power density per module at 50 kW in 3U space, and the smallest footprint for 500 kVA in a single rack and 600 kVA in two racks, to achieve the best utilization compared with its peers

• High AC-AC efficiency up to 96.5% and ECO mode to 99% results in marked energy cost savings

• Green mode featuring a load aggregation function optimizes system efficiency

Ultimate Availability

• Fully modularized design and hot-swappable key modules ensure Mean Time To Repair (MTTR) close to zero without downtime risk

• Redundant components and dual CAN bus delivers highest system availability and avoids single point of failure

• Modular UPS grows with your business by parallel expansion up to 8 units for 4.8MVA of total power capacity

High Manageability

• User-friendly 10” color touch screen enables easy local UPS management

• Environment information such as security, water, fire, and temperature can be integrated into the UPS for easy monitoring via the LCD of the UPS

• If the UPS is equipped with an external battery management system, the battery information can be integrated into the UPS and monitored via the LCD of the UPS

Applications

Specifications

1. Model
2. DPH-300K / DPH-500K / DPH-600K

3. ---

4. Power Rating

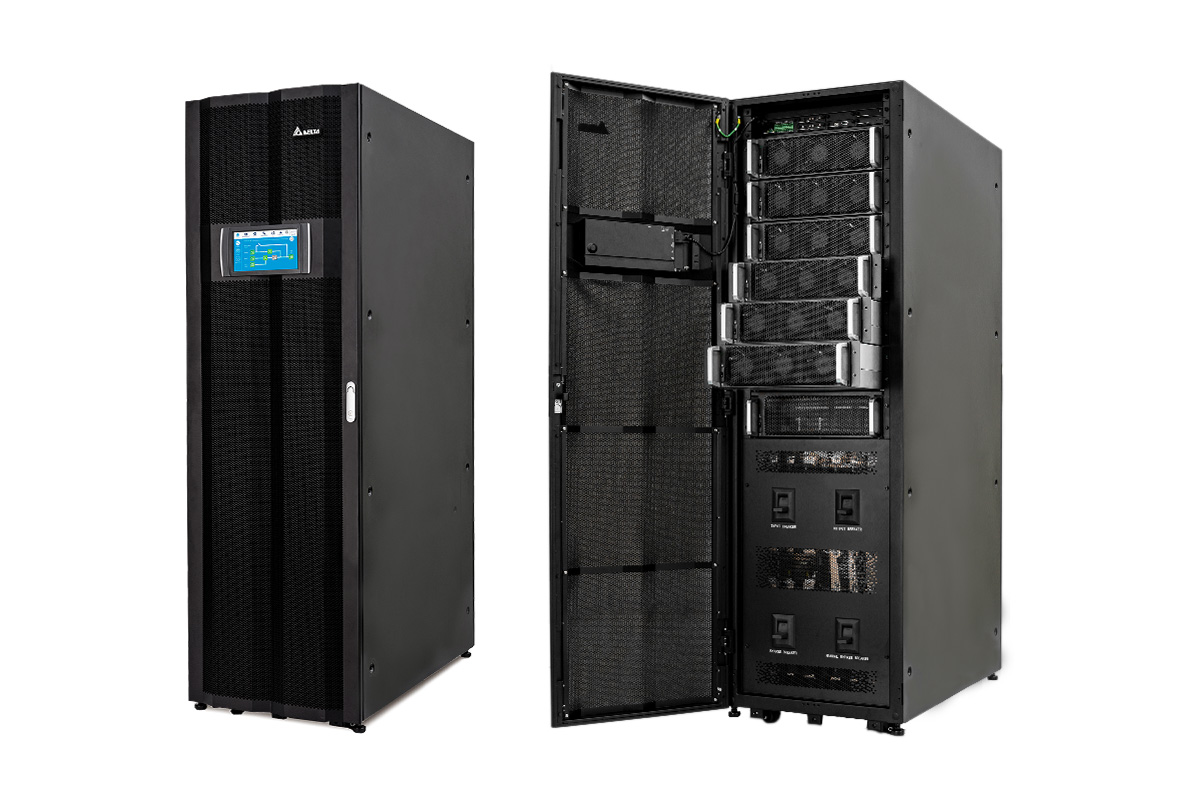

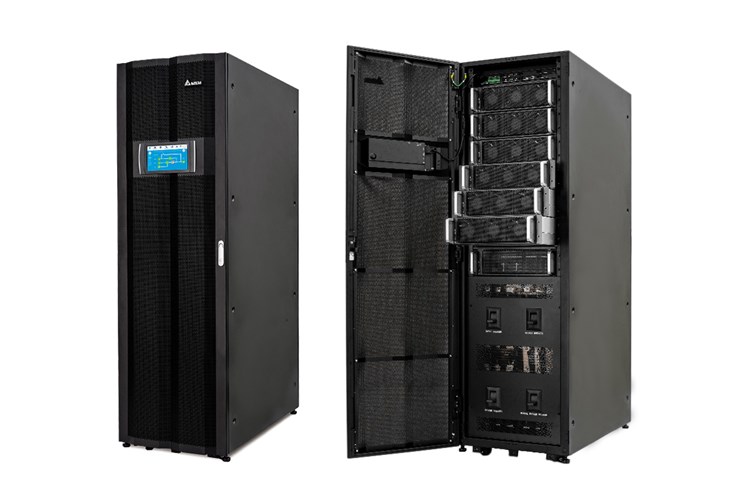

5. DPH-300K
   100, 150, 200, 250, 300 kVA
   100, 150, 200, 250, 300 kW
   Power Module Quantity: Up to 6 units

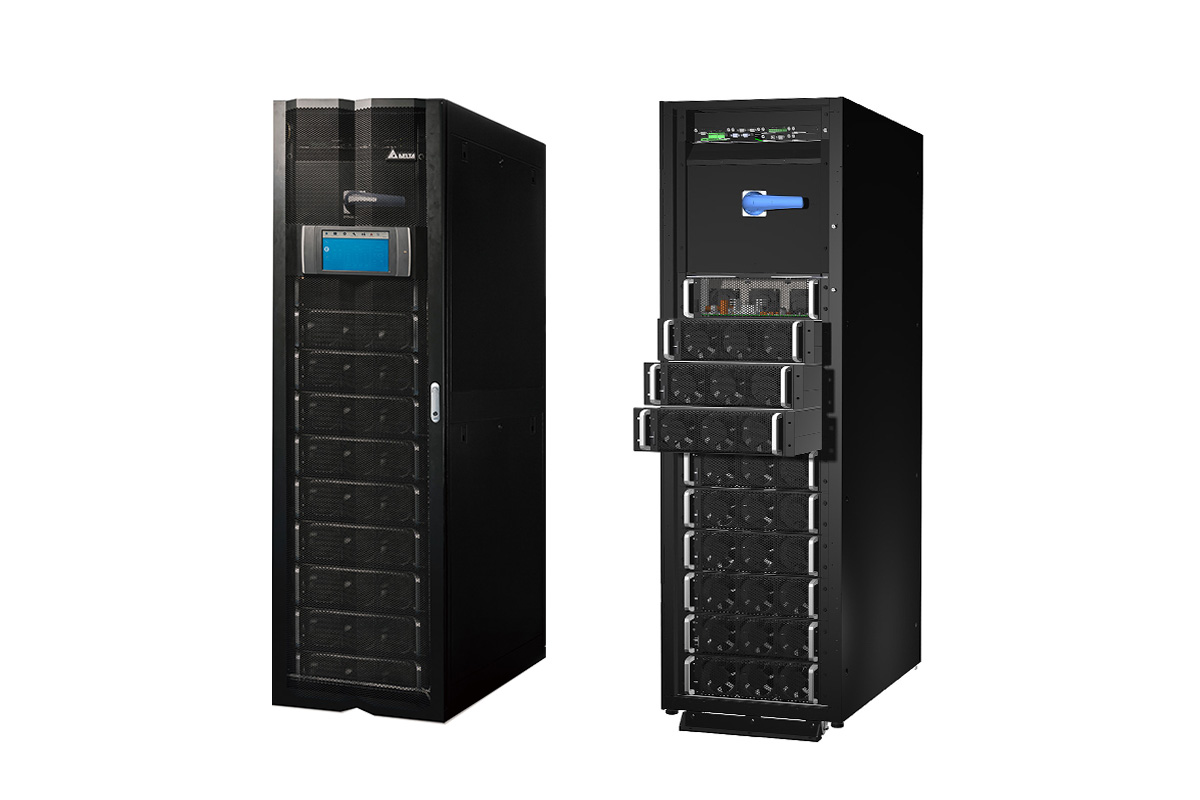

6. DPH-500K
   300, 350, 400, 450, 500* kVA
   300, 350, 400, 450, 450 kW
   Power Module Quantity: Up to 9 units

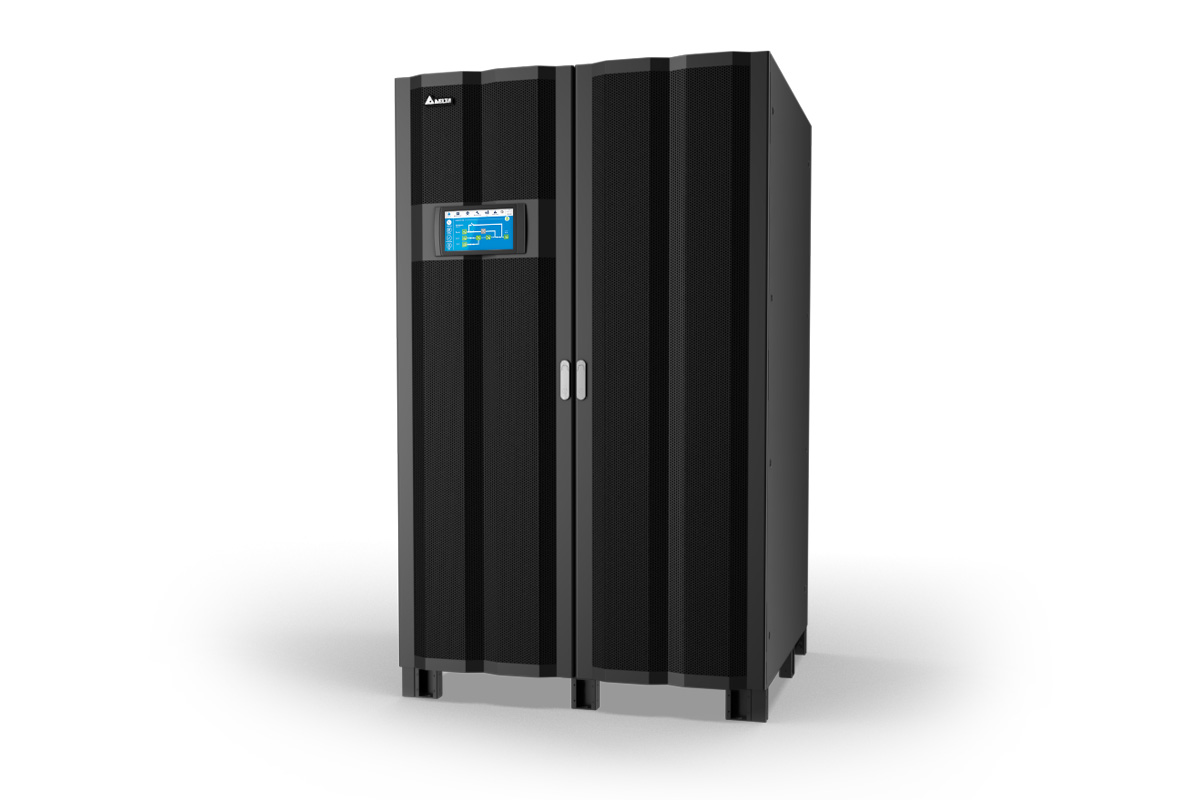

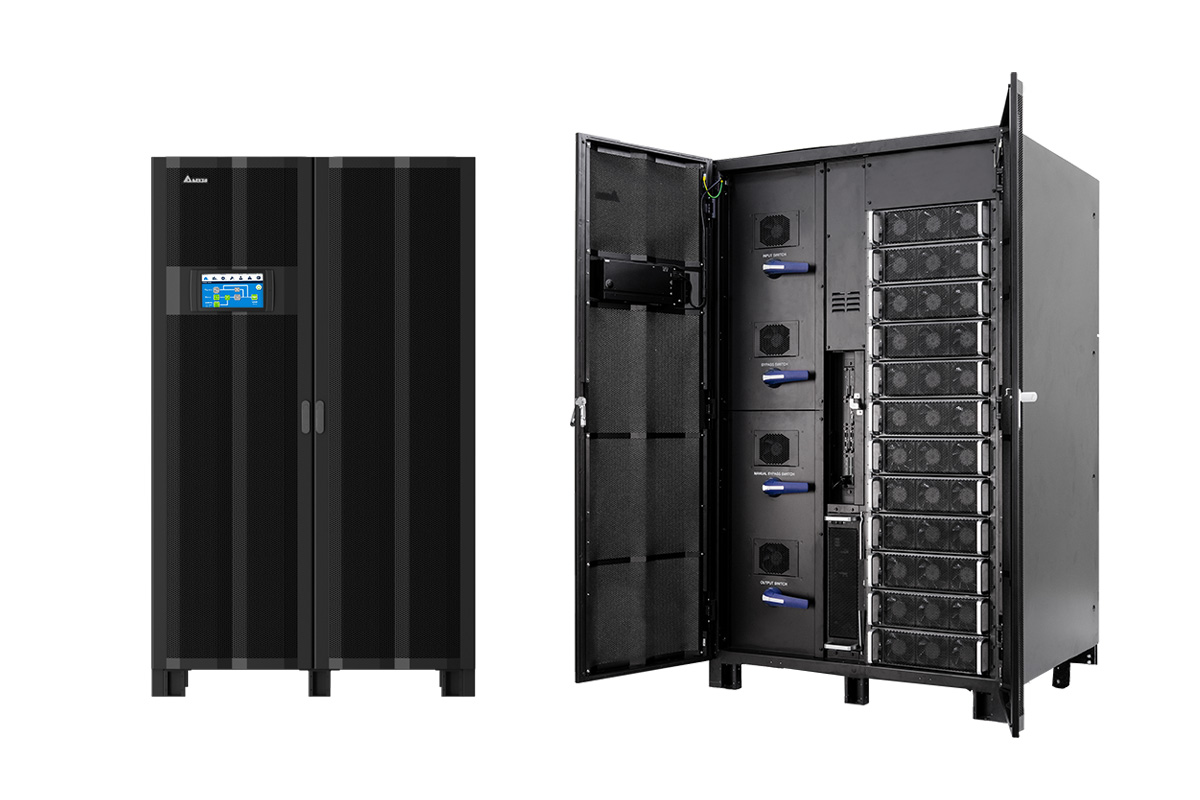

7. DPH-600K
   500, 550, 600 kVA
   500, 550, 600 kW
   Power Module Quantity: Up to 12 units

8. ---

9. Input
10. Nominal Voltage: 220/380 Vac, 230/400 Vac, 240/415 Vac (3-phase, 4-wire + G)
11. Voltage Range: 305~478 Vac (full load), 228~478 Vac (70% load)
12. Current Harmonic Distortion: < 3%**
13. Power Factor: > 0.99
14. Frequency Range: 40~70 Hz

15. ---

16. Output
17. Voltage: 220/380 Vac, 230/400 Vac, 240/415 Vac (3-phase, 4-wire + G)
18. Voltage Harmonic Distortion: ≤ 0.5% (linear load)
19. Voltage Regulation: ± 1% (static)
20. Frequency: 50/60 Hz ± 0.05 Hz
21. Overload Capability: ≤ 125%: 10 minutes; ≤ 150%: 1 minute; > 150%: 1 second

22. ---

23. Display: 10” color touch screen

24. ---

25. Interface
26. Standard:
    RS232 x 1, Parallel port x 4, USB type A x 2, USB type B x 1, MODBUS x 1, Smart slot x 1, REPO x 1, EPO x 1, Input dry contact x 4, Output dry contact x 6, External battery temperature detection x 4, External switch/breaker status dry contact x 4, BMS (RJ45) x 1, Ethernet x 1
27. Optional:
    Relay I/O card, Battery cabinet temperature sensor cable

28. ---

29. Conformance
30. Safety: CE

31. ---

32. Efficiency
33. AC-AC: Up to 96.5%
34. ECO Mode: 99%

35. ---

36. Battery
37. Nominal Voltage: ± 240 Vdc (default, ± 180 Vdc to ± 276 Vdc configurable)
38. Charge Voltage: ± 272 V (adjustable from 204 V to 312 V)
39. Protection of Battery Deep Discharge: Yes

40. ---

41. Environment
42. Operating Temperature: 0~40℃
43. Relative Humidity: 0~90% (non-condensing)
44. Audible Noise (at one meter)
    DPH-300K: < 75 dB
    DPH-500K: < 80 dB
    DPH-600K: < 85 dB
45. IP Protection: IP20

46. ---

47. Others
48. Parallel Redundancy and Expansion: Module and system redundancy, Maximum 8 units
49. Emergency Power Off: Remote (default) and local (optional)
50. Battery Start: Yes

51. ---

52. Physical
53. Dimensions (W x D x H)
    DPH-300K: 600 x 1100 x 2000 mm
    DPH-500K: 600 x 1100 x 2000 mm
    DPH-600K: 1200 x 1100 x 2000 mm
54. Weight - UPS System (without power modules)
    DPH-300K: 311 kg
    DPH-500K: 317 kg
    DPH-600K: 605 kg
55. Weight - 50 kW Power Module (optional)
    36 kg

56. ---

57. * The power module's power rating is adjustable to either 50 kVA or 55.6 kVA via touch panel.
    ** When input vTHD is less than 1%.

    All specifications are subject to change without prior notice.
