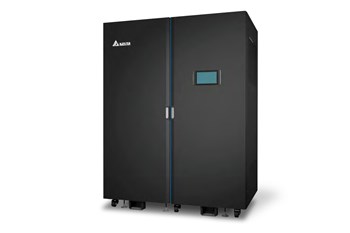

Power Distribution Unit

Features & Benefits

Convenience

• Configurable circuit breaker panel

• LCD display supporting multiple languages

• Recording more than 500 event logs

• Monitoring the current of each branch circuit breaker

• Built-in RS232 interface for remote monitoring

• Six built-in six contact closure outputs

• Two built-in SNMP interfaces increasing availability

Safety

• Local and remote emergency power off functions

• Current unbalance and phase sequence error alarm

• Optional K-factor isolation transformer enhancing safety and reduces harmonics

• Optional lightning surge protection module

Availability

• Easy to relocate, reducing investment costs

• Two built-in sets of panelboards with 42 poles each

• Optional transformers for different output voltages

• Hot-swappable output breaker

Specifications

1. Model
2. PDC 80 / PDC 125

3. ---

4. Capacity
5. PDC 80: 80 kVA
   PDC 125: 125 kVA

6. ---

7. Input
8. Rated Voltage: 220/380 Vac, 3 phase 3 wire+ ground, or 3 phase 4 wire+ ground
9. Voltage Tolerance Range: ± 15%
10. Frequency: 50/60 Hz ± 5% (Automatic detection)

11. ---

12. Output
13. Rated Voltage: 220/380 Vac, 3 phase 4 wire+ ground,
14. Total Switching Capacity: Based on actual product specifications
15. Switchboard Type: Two groups of switchboards and 42 poles each
16. Shunt Switch Type
    Hot-swap switch capacity: 15/20/30 A,
    Optional: 1/2/3 pole

17. ---

18. Transformer
19. Input-Output Type: Δ-Y
20. Efficiency: 97.5% (Full-load)

21. ---

22. LCD Display
23. System: Temperature, ground current, System overheat alarm, V-Loss Alarm, Voltage Imbalance Alarm, Ground Fault Alarm

24. ---

25. Blue Light 4.9” Graphic Interface
26. Input
    Phase voltage, line voltage, phase current, line current, load(%), iTHD, total kVA, total kW, total kWh, Over voltage/over current alarm, under-voltage/nder current alarm, Over line current alarm, iTHD abnormal alarm
27. Total Output
    Phase voltage, line voltage, phase current, line current, frequency, neutral current, load(%), kVA, kW, kWh, power factor, VTHD, iTHD, Over voltage/over current alarm, under-voltage/under current alarm, Over line current alarm, iTHD abnormal alarm, VTHD abnormal alarm, power factor abnormal alarm
28. Output Shunt Plate
    Phase current, kVA, kW, kWh, load (%), iTHD, power factor, line current, over current alarm, under current alarm, Over line current alarm, iTHD abnormal alarm, power factor abnormal alarm
29. Output Shunt
    Current, load (%), over current alarm, under current alarm
30. Temperature
    Environment (instant and alarm), transformers (two stage-alarm)

31. ---

32. Regulatory Compliance
33. Environment: CE
34. Electromagnetic Interference: EN55022

35. ---

36. Communication interface: RS232 x 1, dry contact x 6, SNMP slot x 2

37. ---

38. Optional Accessories: Lightning protector

39. ---

40. Dimensions (W x D x H): 600 x 1090 x 2000 mm standard 19” cabinet

41. ---

42. Weight
43. Excluding Transformer: 225 kg
44. Including H transformer
    80 kVA: 525 kg
    125 kVA: 630 kg

45. ---

46. These specifications are subject to change without notice. Please contact us or our distributors in your region for the latest specs.
