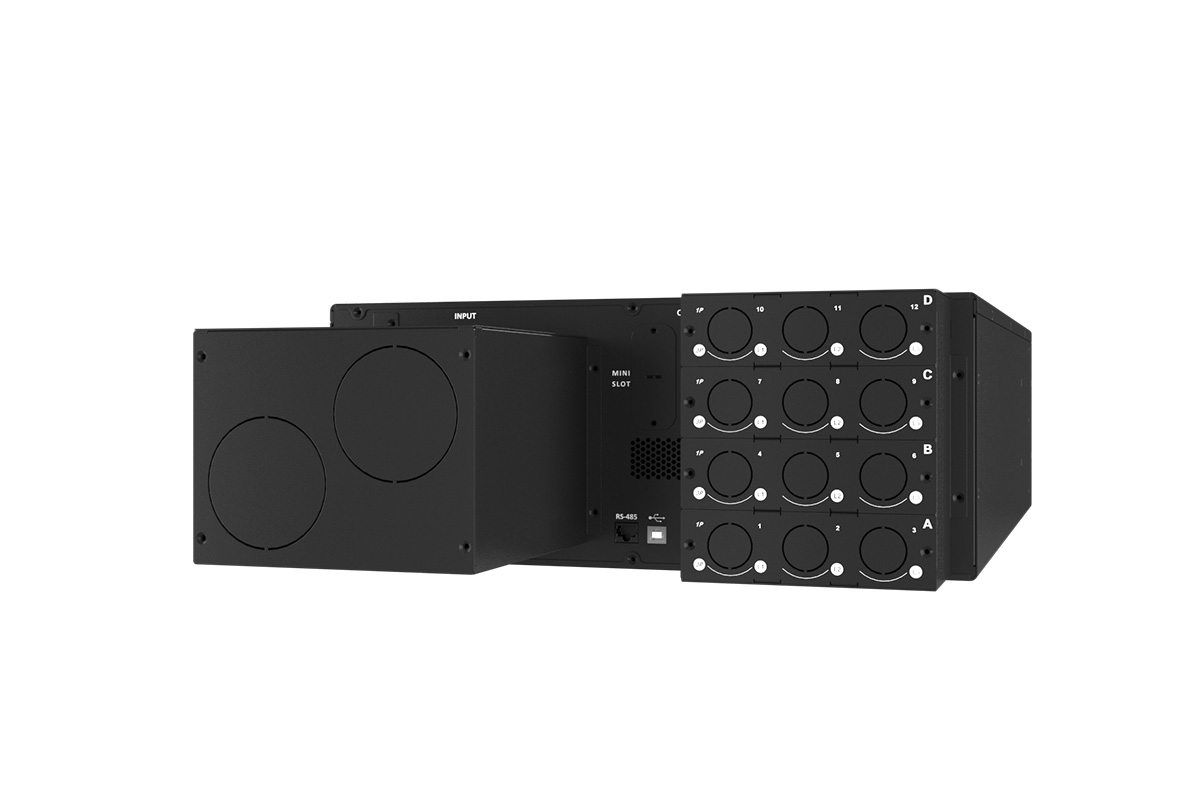

Rack-Mount Remote Power Panel, 40 kVA

Features & Benefits

High Flexibility

• Provides 1 phase and 3 phase breaker modules with 16A and 32A rating options
• Highly scalable design allows tool-less installation of a maximum four breaker modules (optional), and supports a maximum 12 branches
• Standard rRPP chassis fits all 1P/3P 16A/32A breaker modules, and easily adapts to power feed requirement changes

High Reliability

• Intelligently monitors system /each branch’s status for power usage and viability
• Compartmentalized control with separate breaker module and phases
• Offers abnormal voltage and current alarms
• Provides statistics for system max/min voltage, current, frequency and kW with four hours tracking history
• Proactive management from assets with up to 2000 event logs and data trending

Convenience

• Configurable alarm notification for over/under current and poor power factor

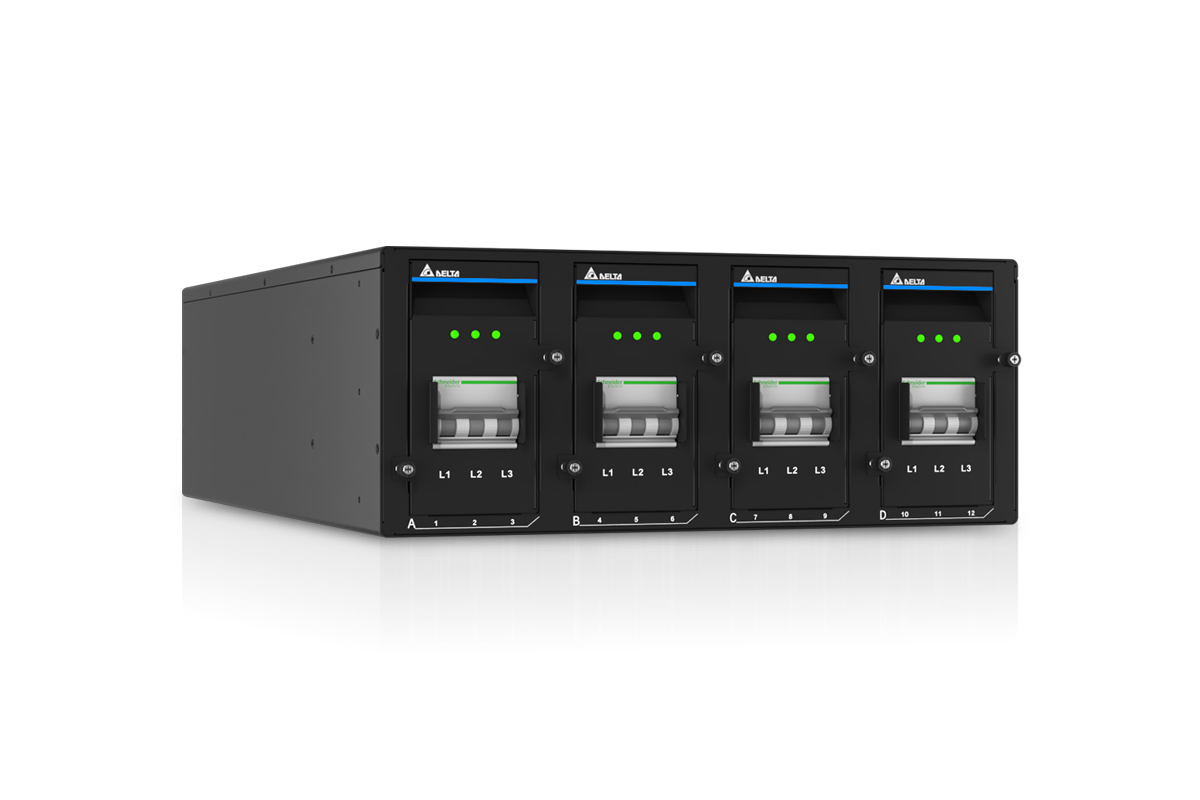

• Each breaker module has LED light for easily identifiable power status
• Freely connects to computer with built-in RS-485 or USB port to monitor branch status and parameter configuration
• Mini SNMP card (optional) allows remote system/branch monitoring. Provides quick summary with glance view, and detail system/branch power status data are readily available

Specifications

1. Model
2. Rack-Mount RPP

3. ---

4. Capacity
5. Full Load Rating: 40 kVA / 40 kW
6. Max. Current: 60 A

7. ---

8. Input
9. Nominal Voltage
   220/380 V, 230/400 V, 240/415 V (3-phase, 4-wire + G)
   220, 230, 240 V (1-phase, 2-wire+G)
10. Voltage Range: 220/380 V ± 15%
11. Frequency Range: 50/60 Hz ± 5%

12. ---

13. Output
14. Nominal Voltage
    220/380 V, 230/400 V, 240/415 V (3-phase, 4-wire + G)
    220, 230, 240V (1-phase, 2-wire+G)
15. Breaker Module (optional)
    Max. 4 x 16A breaker modules (1-pole or 3-pole), supports 12-pole at most
    Max. 2 x 30A/32A breaker modules (1-pole or 3-pole), supports 6-pole at most
16. Breaker Brand: Schneider, Carling

17. ---

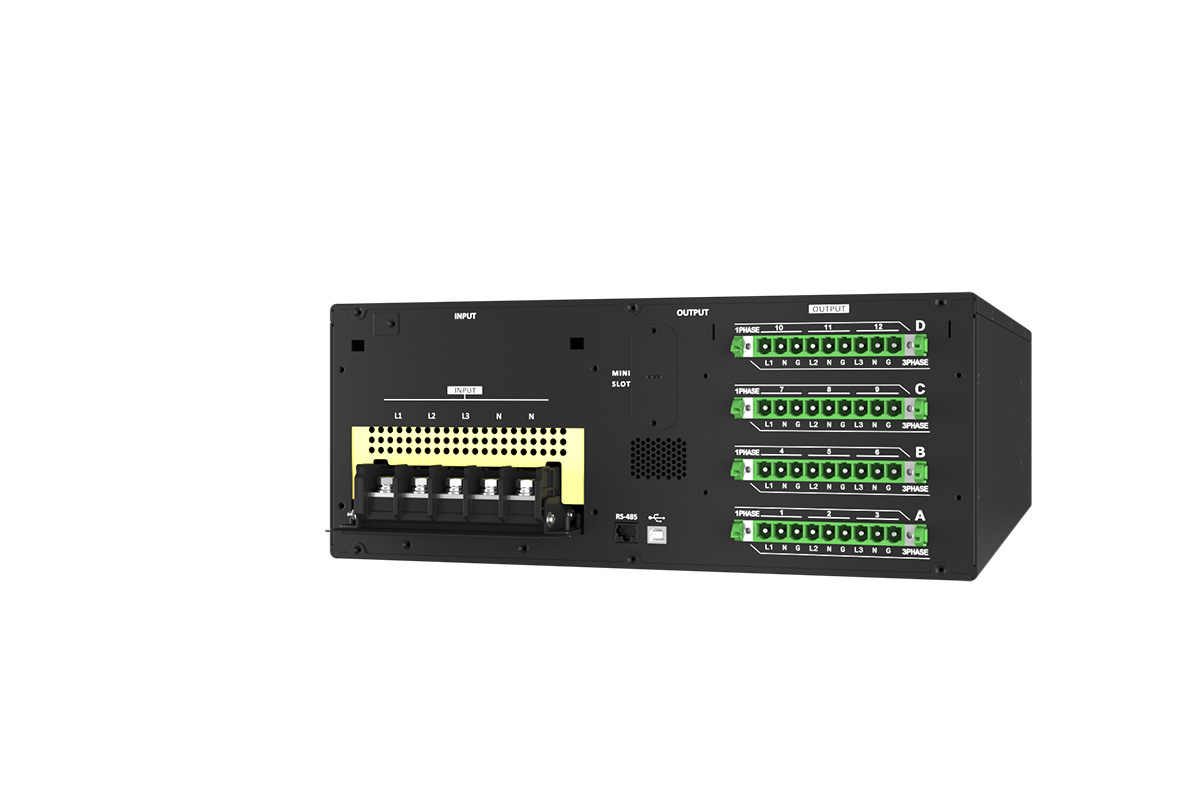

18. Interface: RS-485 port x 1, USB port x 1, Mini slot x 1

19. ---

20. Safety Standard: CE

21. ---

22. Environment
23. Operating Temperature: 0~40°C
24. Relative Humidity: 0~90% (non-condensing)

25. ---

26. Protection (IP Degree): IP20

27. ---

28. Physical
29. Dimensions (W x D x H): 811 x 440.2 x 176.4 mm
30. Weight - Chassis: 18 kg
31. Weight - Each Breaker Module (Optional): 1.5 kg

32. ---

33. All specifications are subject to change without prior notice.
