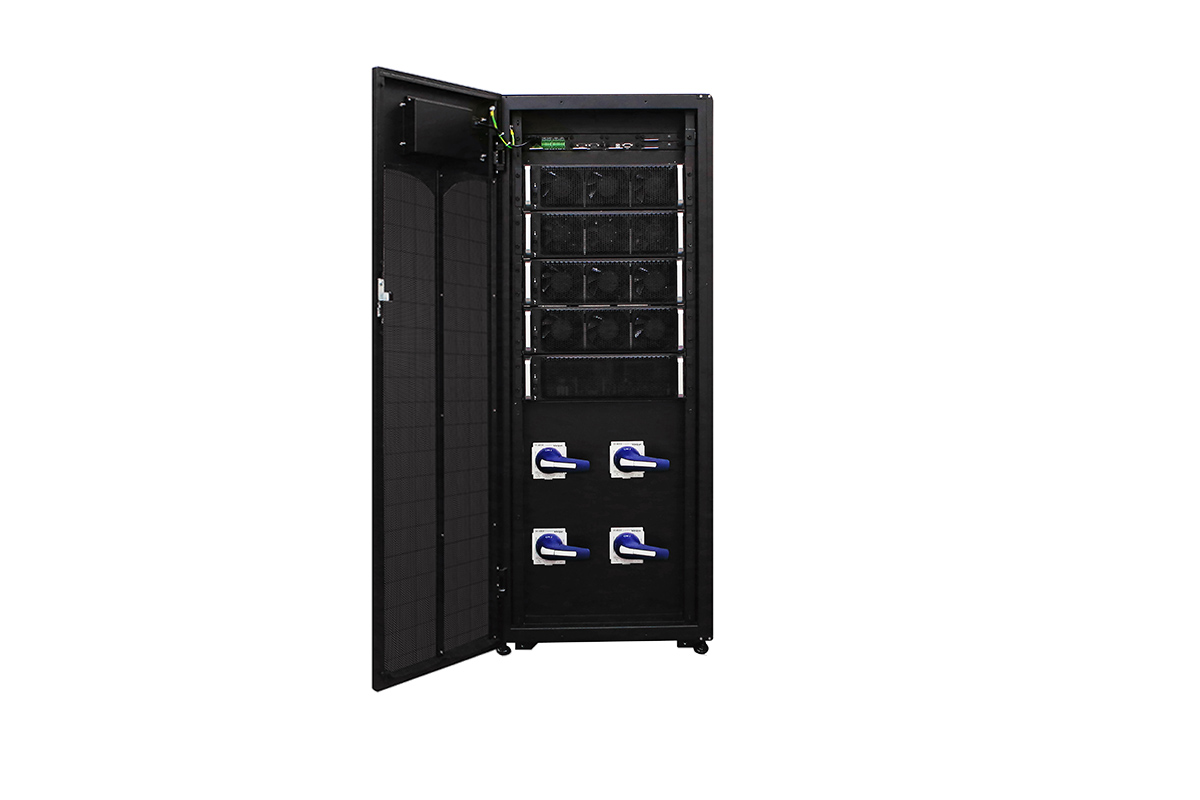

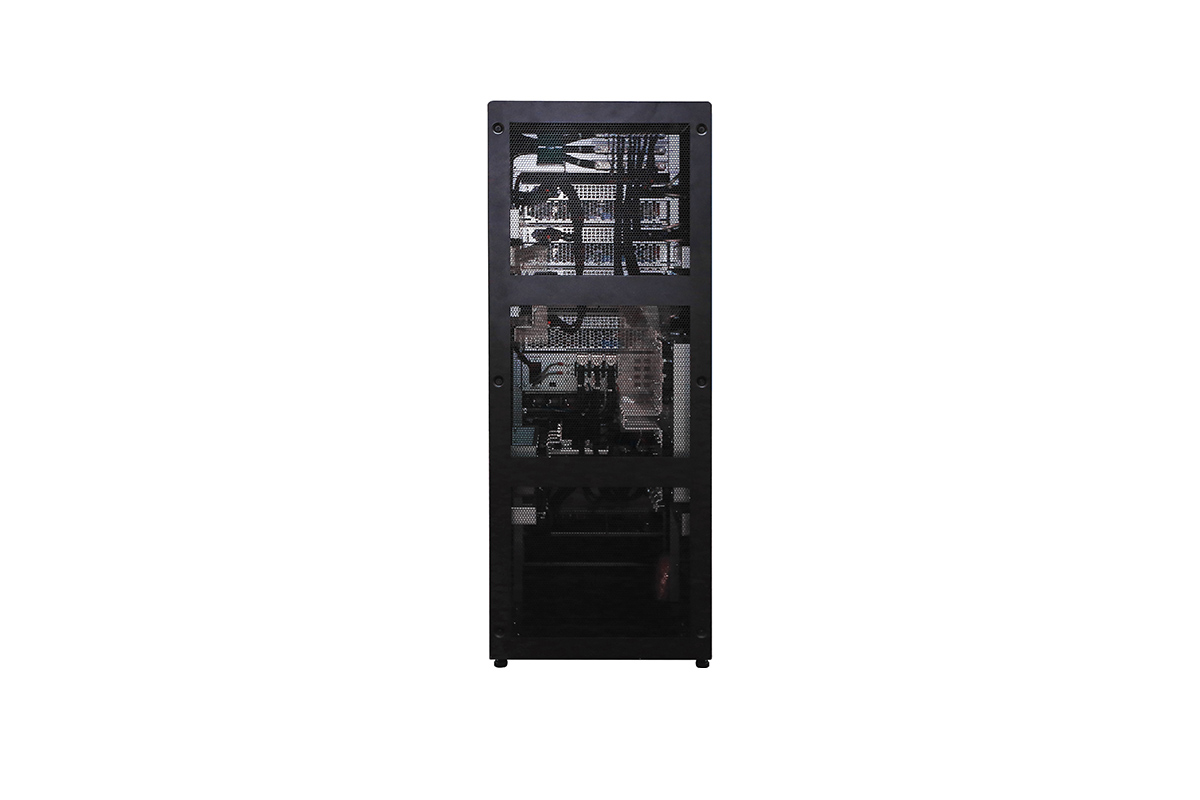

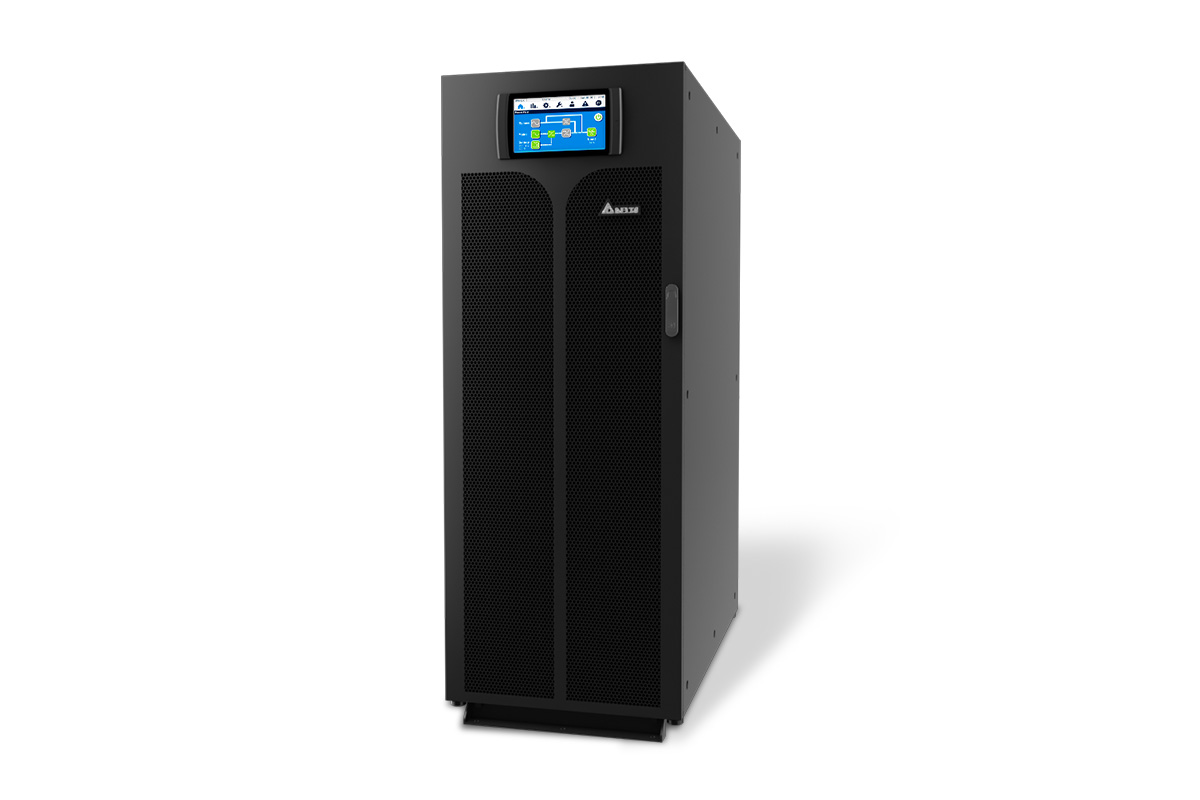

HPH Series 160/200 kVA

Features & Benefits

Best-in-class Power Performance and Efficiency

• High AC-AC efficiency of up to 96.5% and ECO mode to 99% for significant energy cost savings

• Low harmonic pollution (iTHD < 3%) and high input power factor (> 0.99) reduces upstream investment costs

Assured Availability

• Optional redundant controller supports dual CAN bus and ring connection for high system availability

• Proactive battery aging detection for high reliability

• Easy event log check via touch panel and firmware upgrade via USB port

Greater Flexibility

• Parallel expansion and redundancy up to 8 units, 1.6MVA of total power capacity

• Flexible battery configuration 30~46 pieces optimizes battery investment

• Supports either top or bottom cable entry in the single cabinet. The unique fixed symmetric terminal design avoids cable bending issues to enhance cable reliability

Superior Manageability

• User-friendly 10” colored LCD with touch panel enables easy local UPS management

• Environment information such as security, water, fire and temperature can be integrated into the UPS for easy monitoring via the LCD of the UPS

• If the UPS is equiped with Delta's battery management system, the battery information can be integrated into the UPS and monitored via LCD

Applications

Specifications

1. Model
2. HPH-160K / HPH-200K

3. ---

4. Power Rating
5. HPH-160K: 160 kVA* / 150 kW
   HPH-200K: 200 kVA / 200 kW

6. ---

7. Input
8. Nominal Voltage: 220/380 Vac, 230/400 Vac , 240/415 Vac (3-phase, 4-wire + G)
9. Voltage Range : 305~478 Vac (full load); 228~478 Vac (70% load)
10. Current Harmonic Distortion: ≤ 3% **
11. Frequency: 40~70 Hz

12. ---

13. Output
14. Voltage: 220/380 Vac; 230/400 Vac; 240/415 Vac (3-phase, 4-wire + G)
15. Voltage Harmonic Distortion: ≤ 0.5% (linear load)
16. Frequency: 50/60 Hz
17. Frequency Regulation: ± 0.05 Hz (battery mode)
18. Overload Capability: ≤ 125%: 10 minutes; ≤ 150%: 1 minute

19. ---

20. Display: 10” color touch screen

21. ---

22. Interface
23. Standard
    External battery temperature detection x 4, External switch/breaker status dry contact x 4, Output dry contact x 6, Input dry contact x 4, Parallel port x 2, USB Port (Type A x 2; Type B x 1), RS232 Port x 1, Modbus Port x 1, BMS (RJ45) x 1, Ethernet x 1, SNMP Slot x 1, REPO Port x 1
24. Optional
    Relay I/O card, Battery cabinet temperature sensor cable

25. ---

26. Conformance
27. Safety: CE, RCM
28. UPS Classification According to IEC 62040-3: VFI-SS-111

29. ---

30. Efficiency
31. AC-AC: Up to 96.5%
32. ECO Mode: 99%

33. ---

34. Battery
35. Nominal Voltage: ± 240 Vdc
36. Charge Voltage: ± 272 Vdc (adjustable from 204 V to 312 V)
37. Battery Number Configuration: 30~46 pcs (default: 40 pcs)

38. ---

39. Environment
40. Operating Altitude: 1000 meters (without derating)
41. Operating Temperature: 0~40℃
42. Audible Noise: < 70 dB
43. Relative Humidity: 0~95% (non-condensing)

44. ---

45. Others
46. Parallel Redundancy and Expansion: Maximum 8 units
47. Remote Emergency Power Off: Yes
48. Battery Start: Yes

49. ---

50. Physical
51. Dimensions (W x D x H): 600 x 1100 x 1600 mm
52. Weight:
    HPH-160K : 339 kg
    HPH-200K : 376 kg

53. ---

54. * The power rating is adjustable from default 160 kVA to 150 kVA via touch panel.
    ** When input vTHD is less than 1%

    All specifications are subject to change without prior notice.
