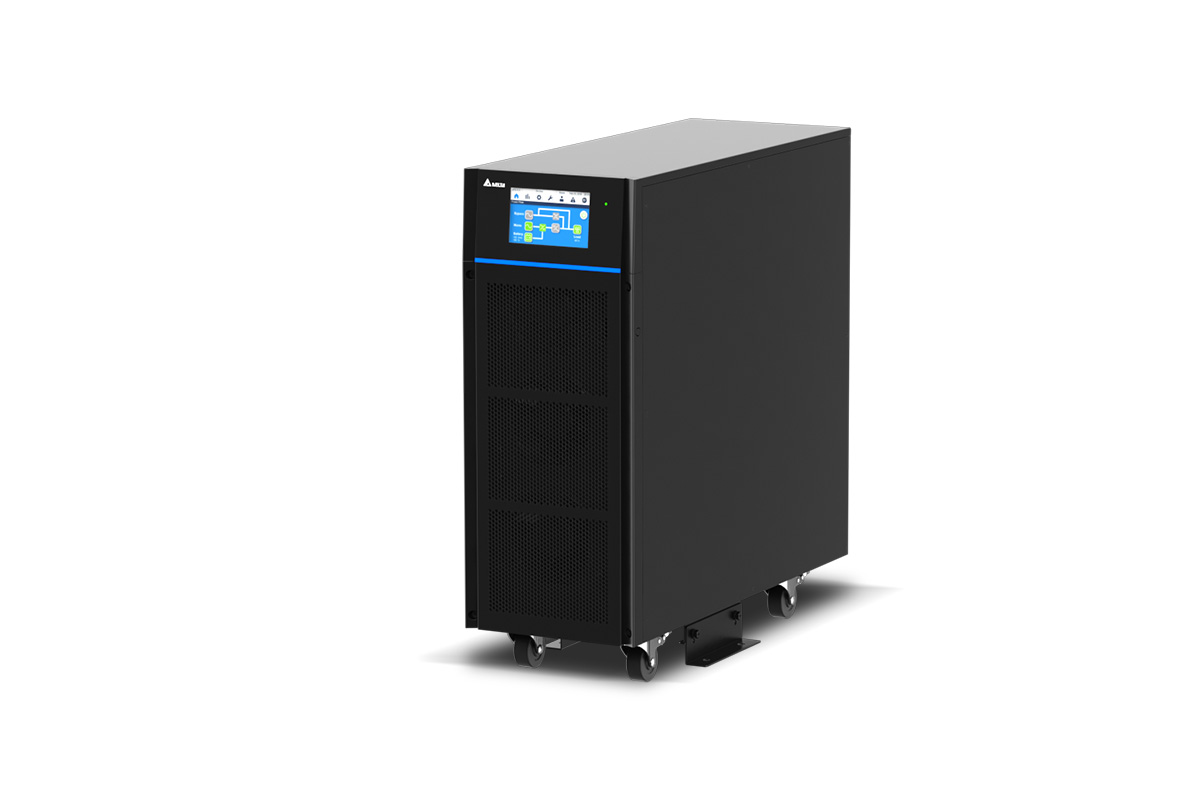

HPH Gen.2 Series 20/30/40 kVA

Features & Benefits

Easy Deployment and Maintenance with Compact Design

• Inbuilt casters for easy move-in, positioning and maintenance

• Inbuilt input / bypass input / output / maintenance bypass breakers for completed distribution panel

• Slim design and smallest footprint (40 kW in 0.15 m²) to reduce the space wasting

Low Total Cost of Ownership

• Wide battery quantity configuration (30-46 pcs) to optimize the battery solution

• High AC-AC efficiency over 96% and ECO mode to 99% resulting in marked energy cost savings

• Low input harmonic distortion (iTHD < 2%) which is highly compatible with upstream of UPS power without additional filter or over sizing generator

High Manageability and Flexibility

• User-friendly 5" color touch screen enables easy local UPS management

• Optional SNMP IPv6 and Modbus communication cards for remote monitoring

• Inbuilt 15A charger for long backup solution without additional cost

• Optional IP42 kit for harsh environment application

• Front access and easy battery replacement for inbuilt battery models

Applications

Specifications

1. Model
2. Long Backup Model:
   HPH-20K / HPH-30K / HPH-40K
3. Inbuilt Battery Model - Batteries Inside:
   HPH-20KB / HPH-30KB / HPH-40KB
4. Inbuilt battery model - No Batteries Inside:
   HPH-20KB-N / HPH-30KB-N / HPH-40KB-N

5. ---

6. Power Rating
7. HPH-20K/B/B-N: 20 kVA / 20 kW
   HPH-30K/B/B-N: 30 kVA / 30 kW
   HPH-40K/B/B-N: 40 kVA / 40 kW

8. ---

9. Input
10. Nominal Voltage: 220/380 Vac, 230/400 Vac, 240/415 Vac (3-phase, 4-wire + G)
11. Voltage Range: 305~478 Vac (full load)
12. Current Harmonic Distortion * :
    HPH-20K/B/B-N: ≤ 2.5%
    HPH-30K/B/B-N: ≤ 2%
    HPH-40K/B/B-N: ≤ 2%
13. Power Factor: > 0.99
14. Frequency Range: 40~70 Hz

15. ---

16. Output
17. Voltage: 220/380 Vac, 230/400 Vac, 240/415 Vac (3-phase, 4-wire + G)
18. Voltage Harmonic Distortion
    ≤ 1.5% (linear load)
    ≤ 4% (non-linear load)
19. Voltage Regulation: ± 1% (static)
20. Frequency: 50/60 Hz
21. Overload Capability
    ≤ 105%: continuously
    > 105~≤ 110%: 60 minutes
    > 110~≤ 125%: 10 minutes
    > 125~≤ 150%: 1 minute
    > 150%: 1 second

22. ---

23. Display: 5” color touch screen

24. ---

25. Interface
26. Standard
    External battery temperature detection x 1, Output dry contact x 4, Input dry contact x 2, Parallel port x 2, USB Port x 1, RS232 Port x 1, REPO Port x 1, Mini Slot x 2

27. ---

28. Conformance
29. Safety: CE, RCM (IEC62040-1, IEC62040-2 Class C2)

30. ---

31. Efficiency
32. AC-AC: > 96% (Peak efficiency)
33. ECO Mode : 99%

34. ---

35. Battery
36. Nominal Voltage: ± 240 Vdc (default, ± 180 Vdc ~ ± 276 Vdc configurable)
37. Charge Voltage: ± 272 Vdc (adjustable from 204 V to 312 V)
38. Maximum Inbuilt Charger Current: 15 A
39. Discharge Time **
    HPH-20K/B/B-N: 20 minutes
    HPH-30K/B/B-N: 14 minutes
    HPH-40K/B/B-N: 9.5 minutes

40. ---

41. Environment
42. Operating Temperature: 0~40℃
43. Relative Humidity: 0~95% (non-condensing)
44. Audible Noise (at one meter) :
    HPH-20K/B/B-N: < 50 dB
    HPH-30K/B/B-N: < 56 dB
    HPH-40K/B/B-N: < 56 dB
45. IP Protection: IP20 (Standard), IP42 (Optional for long backup model)

46. ---

47. Others
48. Parallel Redundancy and Expansion: Up to 4 units
49. Battery Start: Yes

50. ---

51. Physical
52. Dimensions (W x D x H): 240 x 630 x 650 mm
53. Weight
    HPH-20K: 44 kg
    HPH-30K/40K: 50 kg

54. ---

55. Physical (B/B-N)
56. Dimensions (W x D x H): 410 x 780 x 1200 mm
57. Weight (B: with batt.)
    HPH-20KB: 334 kg
    HPH-30KB/40KB: 340 kg
58. Weight (B-N: without batt.)
    HPH-20KB-N: 94 kg
    HPH-30KB-N/40KB-N: 100 kg

59. ---

60. HPH-B: UPS integrated battery model has batteries inside.
    HPH-B-N: UPS integrated battery model has no batteries inside.
    * When input harmonic distortion is less than 1%.
    ** UPS at 70% load with internal battery strings.

    All specifications are subject to change without prior notice.


• Battery temperature compensation cable
• Dust filter
• IP42 kit for long backup model
• EPO button kit
• SNMP IPv6 card
• Modbus card
• Relay I/O card
