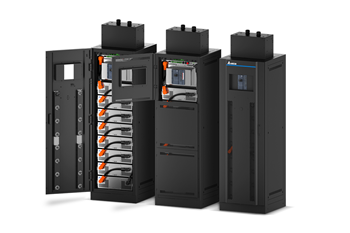

LZH Series

Features & Benefits

Applications

Specifications

1. Model
2. BSPRU-SC1081P0GLC, BSPRU-SC1081S0GLC, BSPRU-SC1081PRGLC
   BSPRU-SC1081SRGLC, BSPRU-SC1081PFGLC, BSPRU-SC1081SFGLC

3. ---

4. Electrical
5. Nominal Capacity / Rated Capacity
   47.1 kWh / 42.4 kWh
6. Nominal Voltage
   588.8 V
7. Standard Charge Cut-off Voltage
   634.8 V
8. Standard Discharge Cut-off Voltage
   533.6 V
9. Charge Current
   Continuous 80 A @25°C
10. Discharge Power (DC)
    400 kW with 5 mins (BOL)
11. Battery Cell Capacity
    40 Ah (LFP Chemistry)
12. Configuration
    8 modules (23S2P) / Rack
13. Life Cycle
    More than 4000 cycles, 1C/1C, 25°C, EOL: 80% SOH

14. ---

15. System BMS Functions
16. Monitoring / Management / Protection
    ▪️Monitoring: battery cell voltage & temperature, battery string voltage & current, etc.
    ▪️Warning & Protection: over/under temperature, over-charge/over-discharge current, and over/under voltage, etc.
    ▪️Calculation: SoC, SoH, remaining backup time, cumulative energy, dynamic maximum available power, etc.
    ▪️Built-in redundant discharge circuit to ensure backup power delivery
17. Communication Bus
    External: CAN 2.0, Modbus TCP/RTU, Dry contact

18. ---

19. Environment
20. Ambient Operation Temperature
    5 to 35°C / 41 to 95°F
21. Humidity
    5-85%
22. Storage Temperature
    -30 to 40°C / -22 to 104°F (Less than 3 months)
23. Permissible Altitude
    ≤ 2000 m

24. ---

25. Heat Dissipation
26. Total Heat
    @400 kW (DC), 5 mins BOL backup: 9,820 Kjoules
27. Recommended Cooling Capacity
    @400 kW, 5 mins: 0.9 kW (3 hours cooling time); 0.3 kW (8 hours cooling time)

28. ---

29. Certification
30. Ingression Protection
    IP20
31. Safety Standard
    UL 1973, IEC 62619, IEC/UL 60730-1 (Functional safety), UL 9540A, CE Mark, UN 38.3, EN 61000-6-2, EN 61000-6-4
32. Quality Standard
    ISO 9001

33. ---

34. Product Descriptions
35. Primary/Secondary Configuration
    ⦁ BSPRU-SC1081P0GLC: Primary rack
    ⦁ BSPRU-SC1081S0GLC: Secondary rack
    ⦁ BSPRU-SC1081PRGLC: Primary rack
    ⦁ BSPRU-SC1081SRGLC: Secondary rack
    ⦁ BSPRU-SC1081PFGLC: Primary rack
    ⦁ BSPRU-SC1081SFGLC: Secondary rack
36. Master BMS Configuration
    ⦁ BSPRU-SC1081P0GLC: Yes
    ⦁ BSPRU-SC1081PRGLC: Yes
    ⦁ BSPRU-SC1081PFGLC: Yes
37. Optional Configuration – Door
    ⦁ BSPRU-SC1081P0GLC: Hanging door
    ⦁ BSPRU-SC1081S0GLC: Hanging door
    ⦁ BSPRU-SC1081PRGLC: Revolving door
    ⦁ BSPRU-SC1081SRGLC: Revolving door
    ⦁ BSPRU-SC1081PFGLC: Revolving door
    ⦁ BSPRU-SC1081SFGLC: Revolving door
38. Optional Configuration – Fan
    ⦁ BSPRU-SC1081PFGLC: With fans
    ⦁ BSPRU-SC1081SFGLC: With fans

39. ---

40. Physical
41. Dimensions (W x H x D)
    ⦁ BSPRU-SC1081P0GLC/-SC1081S0GLC:
    - With Top-hat: 620 x 2185 x 625 mm (24.4 x 86 x 24.6 inch)
    - Without Top-hat: 620 x 1910 x 625 mm (24.4 x 75.2 x 24.6 inch)
    ⦁ BSPRU-SC1081PRGLC/-SC1081SRGLC/-SC1081PFGLC/-SC1081SFGLC:
    - With Top-hat: 620 x 2185 x 650 mm (24.4 x 86 x 25.6 inch)
    - Without Top-hat: 620 x 1910 x 650 mm (24.4 x 75.2 x 25.6 inch)
42. Total Weight (approximate)
    ⦁ BSPRU-SC1081P0GLC/-SC1081S0GLC/-SC1081PRGLC/-SC1081SRGLC:
    - With Battery Module: 900 kg (1984.2 lbs)
    - Without Battery Module: 345 kg (760.6 lbs)
    ⦁ BSPRU-SC1081PFGLC/-SC1081SFGLC:
    - With Battery Module: 905 kg (1995.2 lbs)
    - Without Battery Module: 350 kg (771.6 lbs)

43. ---

44.
    All specifications are subject to change without prior notice.
